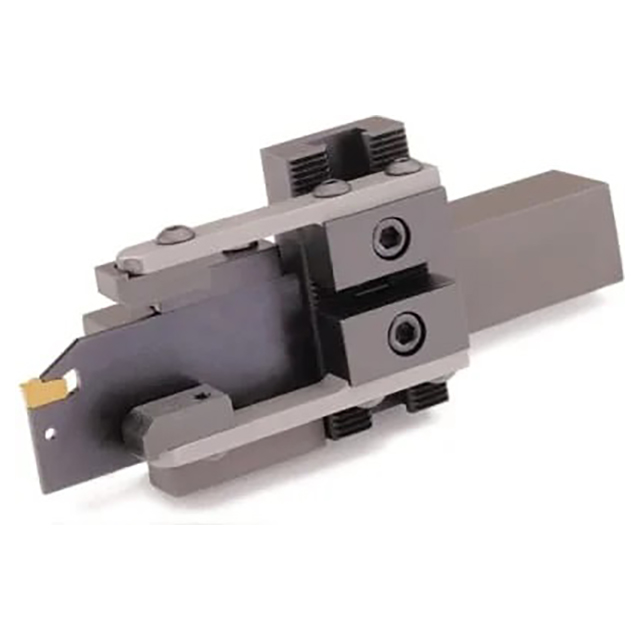

Royal Products 43456 | 3/4" Square Shank x 1/8" - 2-1/4" Range Combo CNC Bar Puller

SKU: 55003473 Weight: 2.62 LBS Minimum Purchase: 1 unit
UPC:
$1,780.00 $1,602.00
(You save $178.00)
Shipping: Calculated at Checkout

About This Item

  • The Royal Combo CNC Bar Puller is both a bar puller and a cut-off tool in one unit. Benefits of this design include:
  • Saving a turret station
  • Reduced cycle time because the turret does not need to index between the cut-off and pulling operations
  • Very easy to setup and use
  • Unit can pull round, square, and hex stock
  • Compact design enables it to be used on most CNC lathes
  • Each Combo Bar Puller includes one set of standard jaws and one blank spindle bushing

Product Specifications
Bar Puller Shank Size (Inch) 3?4"
Bar Puller Shank Shape Square
Bar Puller Gripping Range (Inch) 1?8" - 2 1?4"
Combo Bar Puller Dimension A (Inch) 2 5?8"
Combo Bar Puller Dimension B (Inch) 4 3?4"
Combo Bar Puller Dimension C (Inch) 4 3?4"
Max Depth of Cut (D) (Inch) 9?16"
Combo Bar Puller Dimension E (Inch) 0.125"
