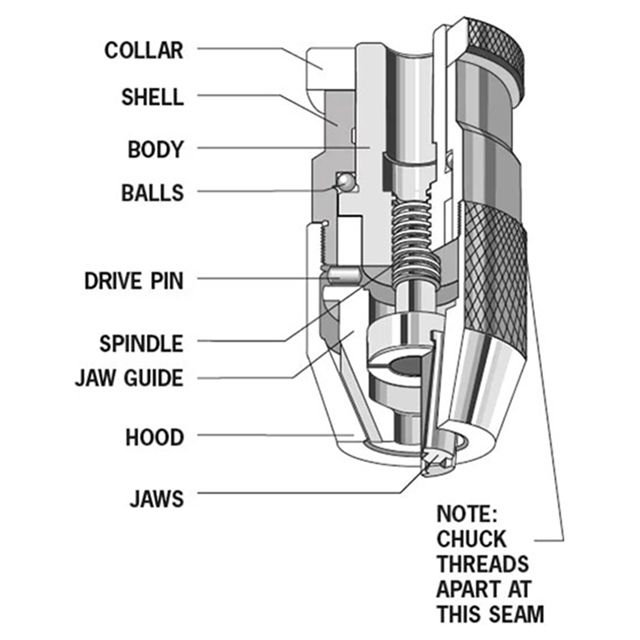

- Remove collar from chuck
- There is an invisible seam between the hood and shell. Hold chuck by the shell in a vise with soft jaws and loosen hood with a strap wrench – RH thread
- Once the hood has been loosened, unscrew by hand to prevent distortion
- Slide jaws out of jaw guide and remove guide
- Remove body and spindle assembly to expose balls
- Clean all parts with a mild solvent
- Replace worn or damaged parts
- Reverse steps for assembly
Product Specifications
| Chuck Model | CP160-4MT |
