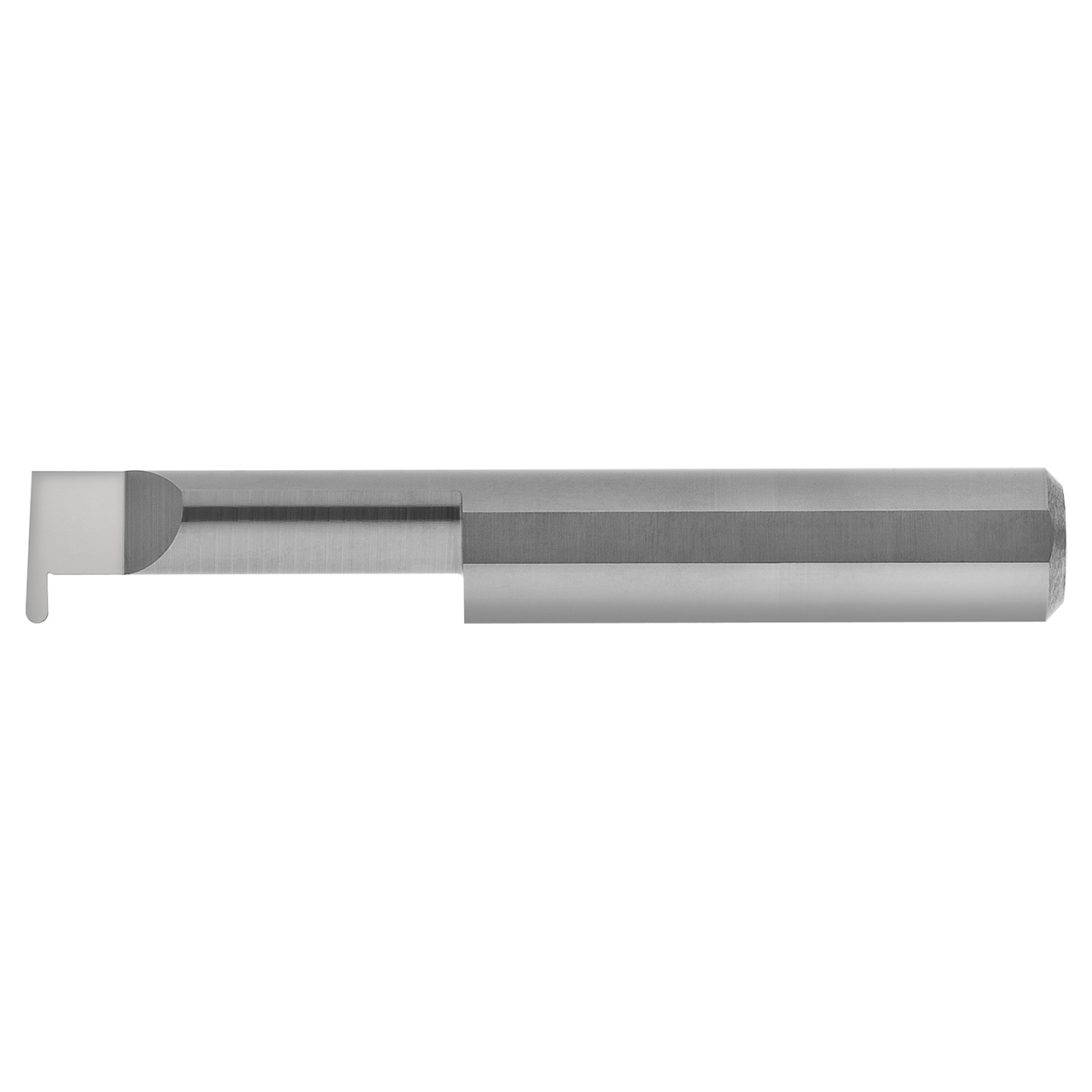

Scientific Cutting Tools GFR030Q-4A | 0.250" Minimum Bore Diameter x 0.250" Maximum Depth x 0.250" Shank x 2.500" OAL AlTiN Coated Solid Carbide Grooving Tool

$44.90
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Groove Width (Inch):
1/32"
Groove Width (Decimal Inch):
0.0300"
Groove Width (mm):
0.79mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
AlTiN
interval quantity:
1
SKU:
10242079
Weight:
0.09 LBS
Shipping:
Calculated at Checkout
Scientific Cutting Tools GFR030Q-4A | 0.250" Minimum Bore Diameter x 0.250" Maximum Depth x 0.250" Shank x 2.500" OAL AlTiN Coated Solid Carbide Grooving Tool

Features:

  • AlTiN+ coating for higher Surface Feet per Minute
  • Elliptically ground for maximum strength
  • Polished flute face for optimum performance

Product Specifications
Manufacturer Part NumberGFR030Q-4A
Minimum Bore Diameter (Decimal Inch)0.250"
Maximum Bore Depth (Decimal Inch)0.250"
Off Set (Decimal Inch)0.060"
Width (Decimal Inch)0.030"
Shank Diameter (Decimal Inch)0.250"
Overall Length (Decimal Inch)2.500"
MaterialSolid Carbide
CoatingAlTiN
Product TypeGrooving Tool
