Product Specifications

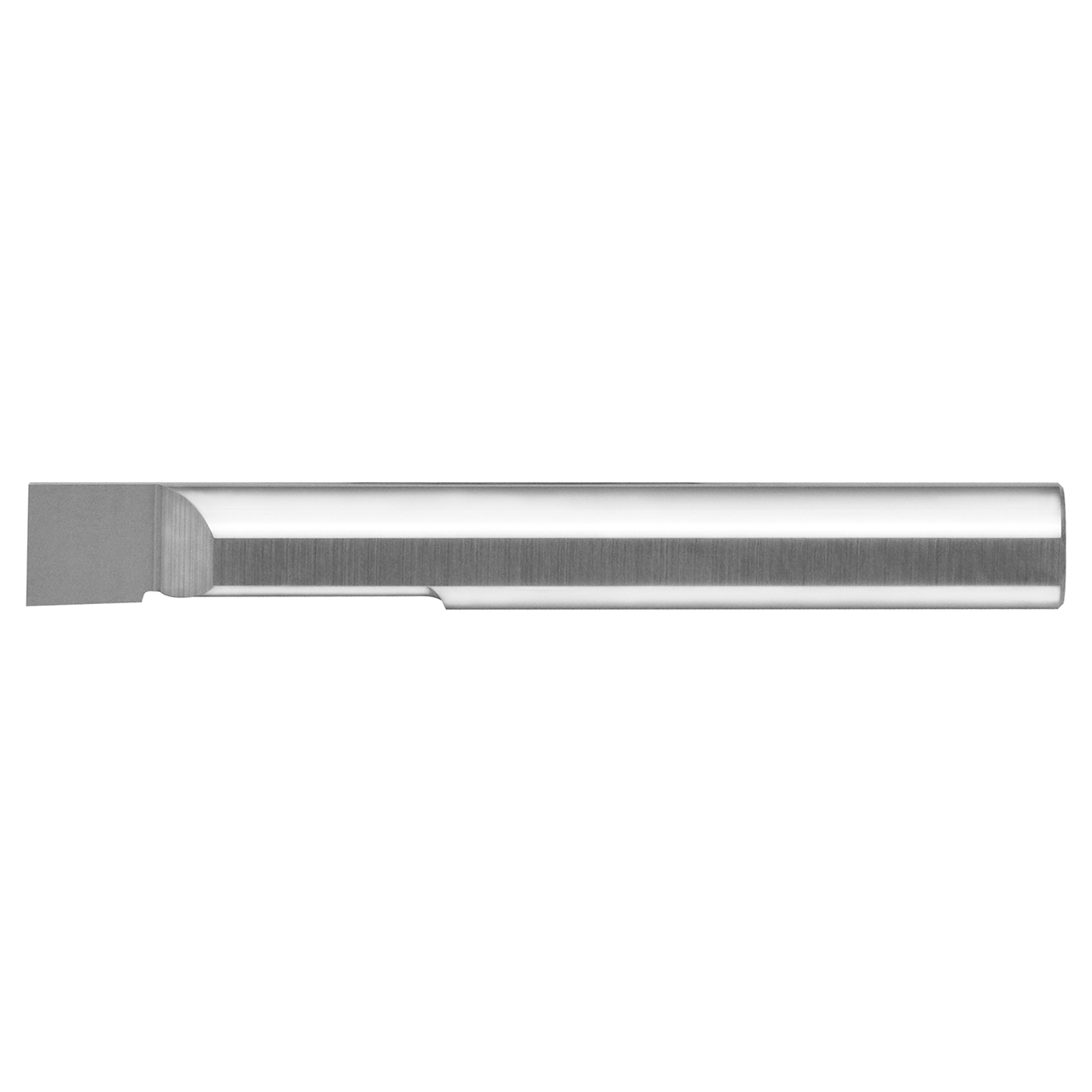

| Manufacturer Part Number | LHBB3116A |
| Minimum Bore Diameter (Decimal Inch) | 0.310" |
| Maximum Bore Diameter (Inch) | 1-3/4" |
| Maximum Bore Depth (Inch) | 1-3/4" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Overall Length (Decimal Inch) | 3.000" |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Radial Relief Boring Bar |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
5/16"
Minimum Bore Diameter (Decimal Inch):
0.3100"
Minimum Bore Diameter (mm):
7.94mm
Material:
Solid Carbide
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Finish/Coating:
AlTiN
interval quantity:
1
