Features:
- Non-crest cutting allows maximum flexibity for plated and non-standard threads
- Minimal side cutting pressure
- Conforms to aerospace standard AS8879
Product Specifications
| Manufacturer Part Number | SPTM488-12EXJ |
| Cutting Diameter (Decimal Inch) | 0.488" |
| Neck Diameter (Decimal Inch) | 0.340" |
| Radius (Decimal Inch) | 0.014" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.500" |
| Length (Decimal Inch) | 0.052" |
| Length of Cut (Decimal Inch) | 1.400" |
| Thread Size | 12 |
| Number of Flute | 5 |
| Thread Standard | UNJ |
| Radius (Decimal Inch) | 0.014" |
| Thread Pitch | UNJ-12 |
| Material | Solid Carbide |
| Coating | Uncoated |

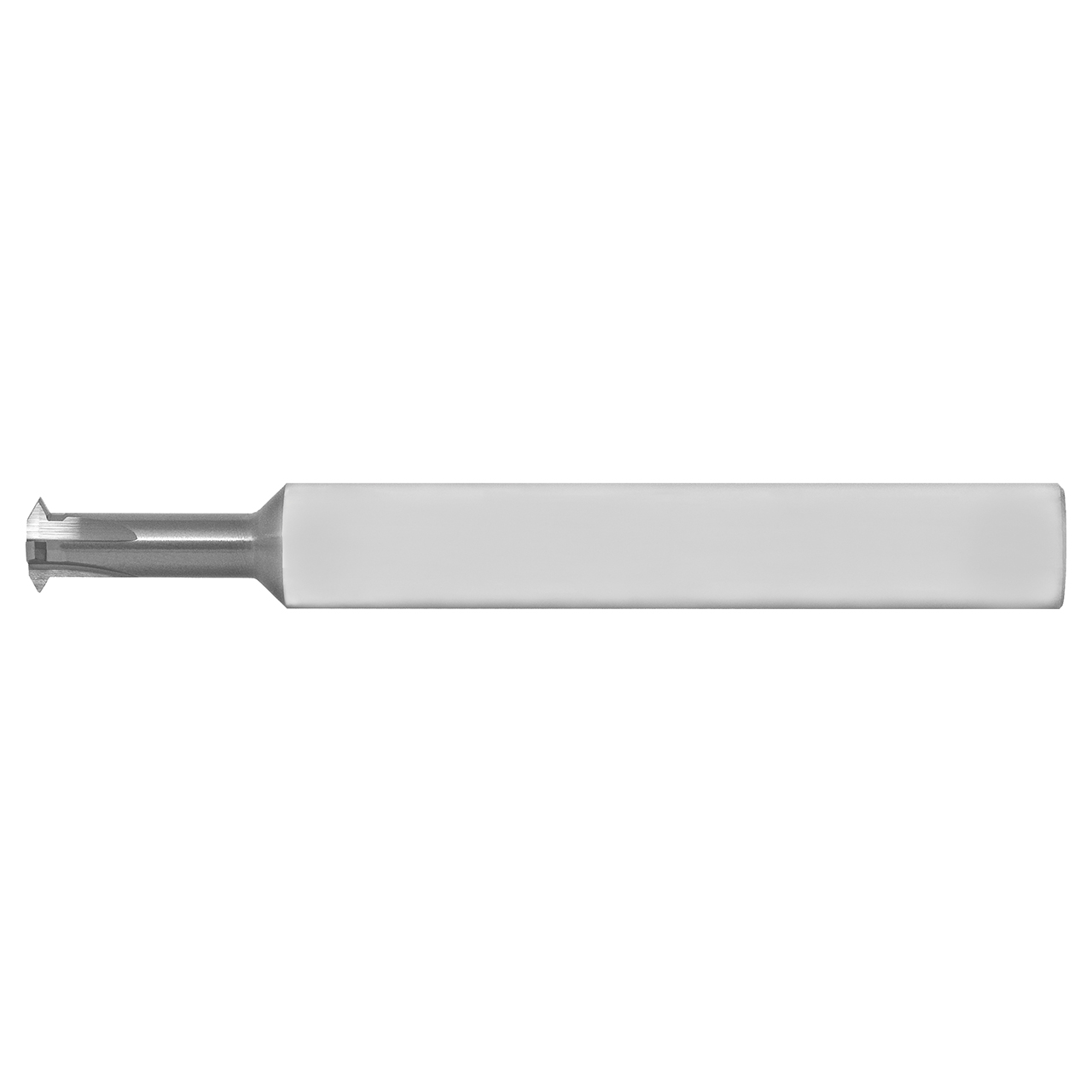

| Product Type | Single Profile Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Number of Flutes:
5
Cutting Diameter (Inch):
41/84"
Cutting Diameter (Decimal Inch):
0.4880"
Cutting Diameter (mm):
12.40mm
Neck Diameter (Inch):
17/50"
Neck Diameter (Decimal Inch):
0.3400"
Neck Diameter (mm):
8.64mm
