Features:
- Solid carbide provides maximum tool rigidity
- Long reach tools are available from stock
- Cuts UNC, UNF, UNEF, and UNS threads
- Cuts UNJ threads (internal only)
Product Specifications

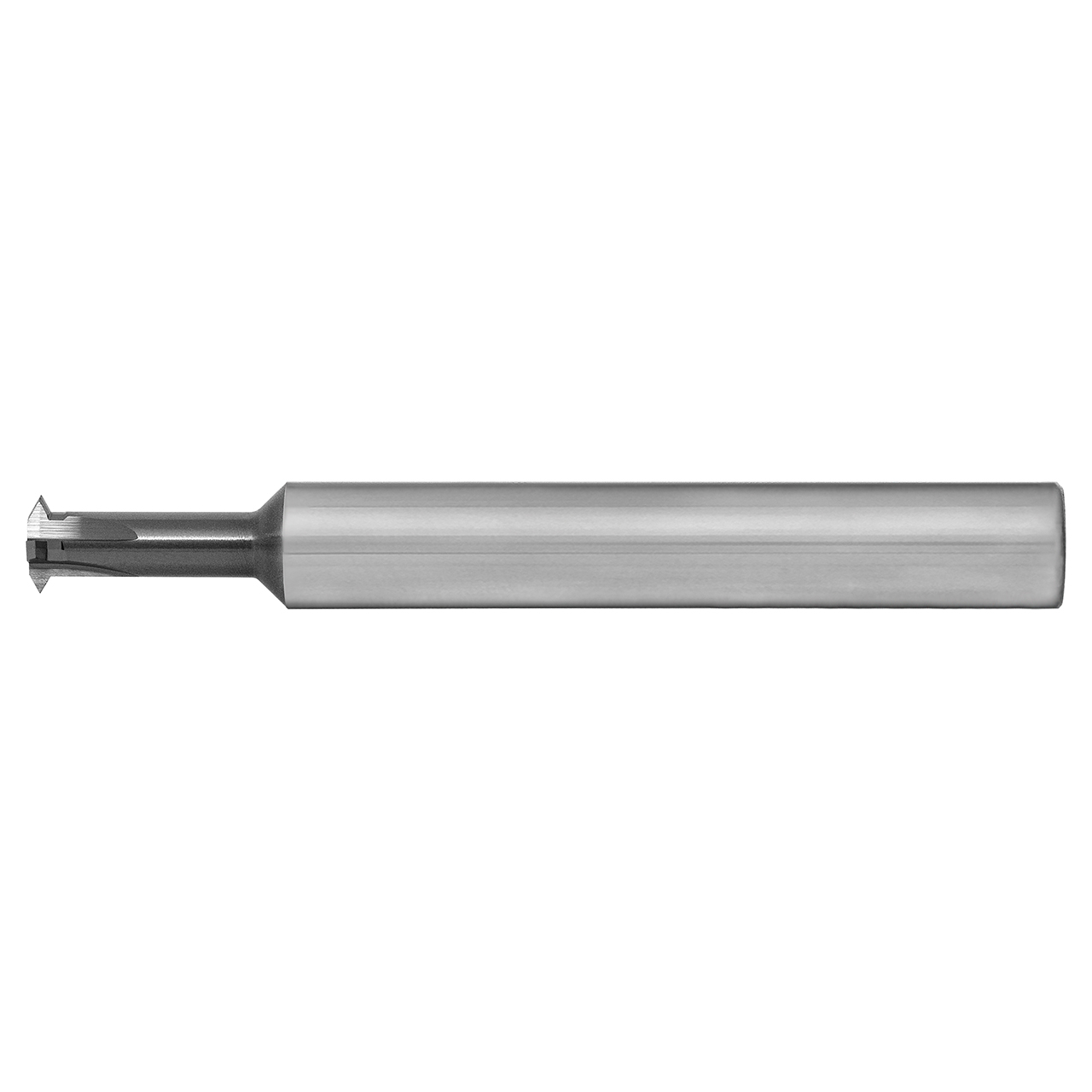

| Manufacturer Part Number | SPTM595XLA |
| Cutting Diameter (Decimal Inch) | 0.595" |
| Neck Diameter (Decimal Inch) | 0.430" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Overall Length (Decimal Inch) | 5.000" |
| Length (Decimal Inch) | 0.051" |
| Length of Cut (Decimal Inch) | 2.750" |
| Number of Flute | 6 |
| Minimum Internal Thread (Inch) | 3/4" |
| Internal Limits TPI | 10 to 32 TPI |
| External Limits TPI | 10 to 32 TPI |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Single Profile Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
6
Cutting Diameter (Inch):
47/79"
Cutting Diameter (Decimal Inch):
0.5950"
Cutting Diameter (mm):
15.11mm
Neck Diameter (Inch):
3/7"
Neck Diameter (Decimal Inch):
0.4300"
Neck Diameter (mm):
10.92mm
interval quantity:
1
