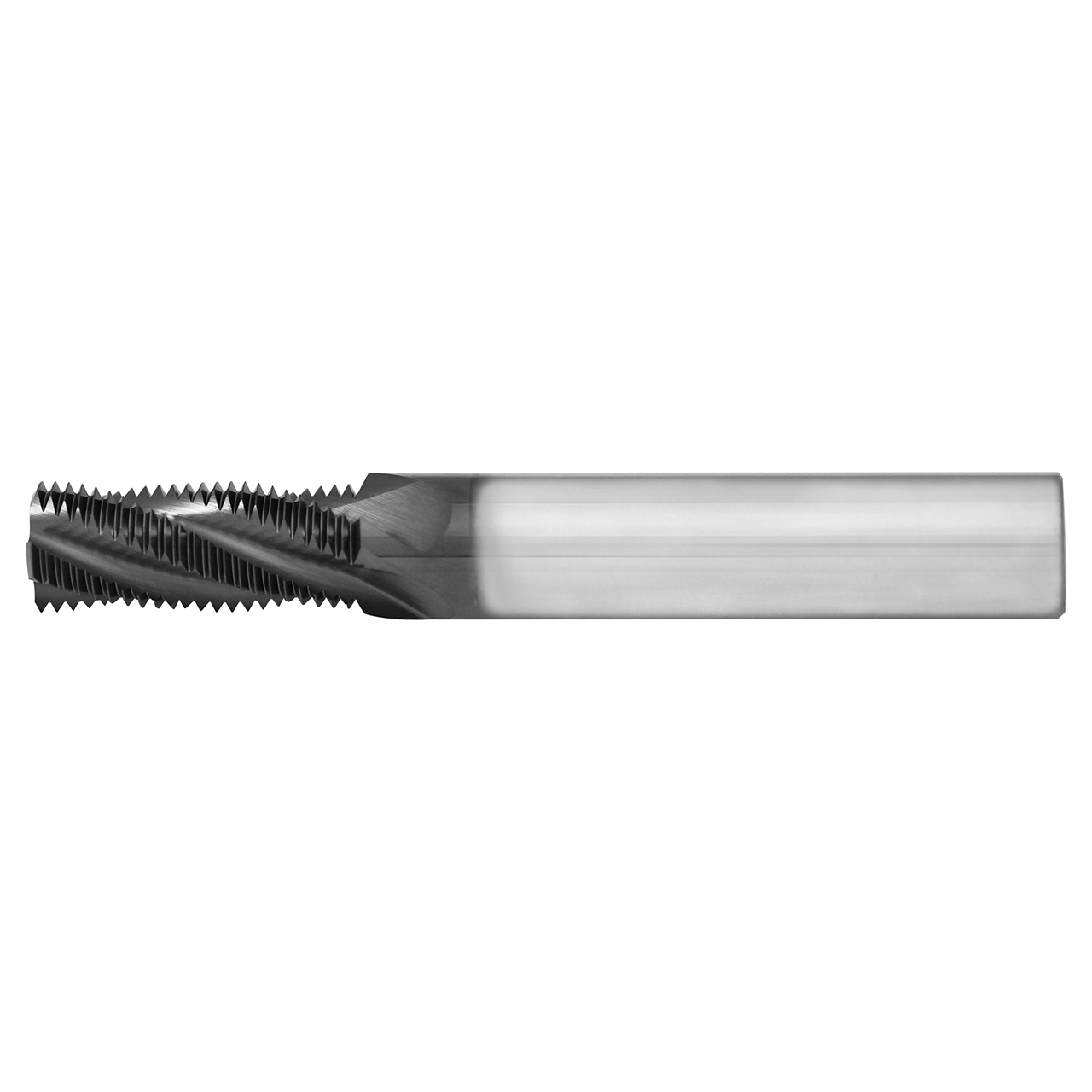

Features:
- Helical flute for reduced side cutting pressure
- Non-crest cutting on the internal thread allows maximum flexibility for plated and non-standard threads
Product Specifications
| Manufacturer Part Number | TM170-24H |
| Cutting Diameter (Decimal Inch) | 0.170" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Minium ID Thread | 1/4-24" |
| Length (Decimal Inch) | 0.019" |
| Length of Cut (Decimal Inch) | 0.517" |
| Number of Flute | 3 |
| Thread Pitch | 1/4-24" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Cutter Diameter (Inch):
11/64"
Cutter Diameter (Decimal Inch):
0.1700"
Cutter Diameter (mm):
4.37mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
15/29"
Length of Cut (Decimal Inch):
0.5170"
Length of Cut (mm):
13.13mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
