Features:
- Optional short length-of-cut for ideal length-to-diameter ratio
- Cuts UNC, UNF, UNEF, UNS, and UNJ (internal only)
- Internal crest cutting design provides strongest possible tooling
Product Specifications

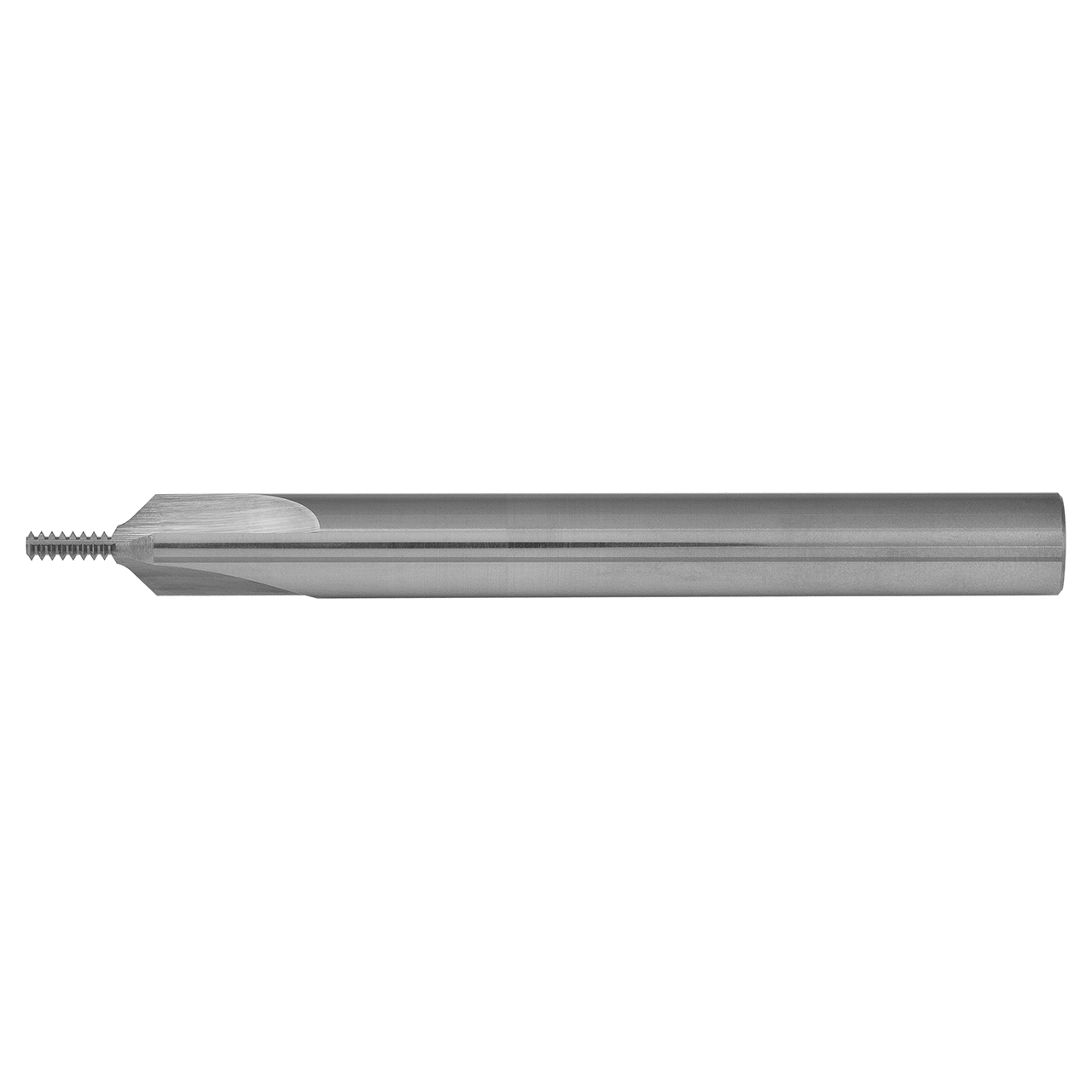

| Manufacturer Part Number | TM170-36 |
| Cutting Diameter (Decimal Inch) | 0.170" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Minium ID Thread | 1/4-36 |
| Length (Decimal Inch) | 0.012" |
| Length of Cut (Decimal Inch) | 0.540" |
| Number of Flute | 3 |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Cutting Diameter (Inch):
11/64"
Cutting Diameter (Decimal Inch):
0.1700"
Cutting Diameter (mm):
4.37mm
Length of Cut (Inch):
27/50"
Length of Cut (Decimal Inch):
0.1700"
Length of Cut (mm):
13.72mm
Finish/Coating:
Uncoated
interval quantity:
1
