Features:
- Helical flute for reduced side cutting pressure
- Non-crest cutting on the internal thread allows maximum flexibility for plated and non-standard threads
Product Specifications
| Manufacturer Part Number | TM345-18H |
| Cutting Diameter (Decimal Inch) | 0.345" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Overall Length (Decimal Inch) | 3.500" |
| Minium ID Thread | 7/16-18" |
| Length (Decimal Inch) | 0.025" |
| Length of Cut (Decimal Inch) | 0.800" |
| Number of Flute | 4 |
| Thread Pitch | 7/16-18" |
| Material | Solid Carbide |
| Coating | Uncoated |

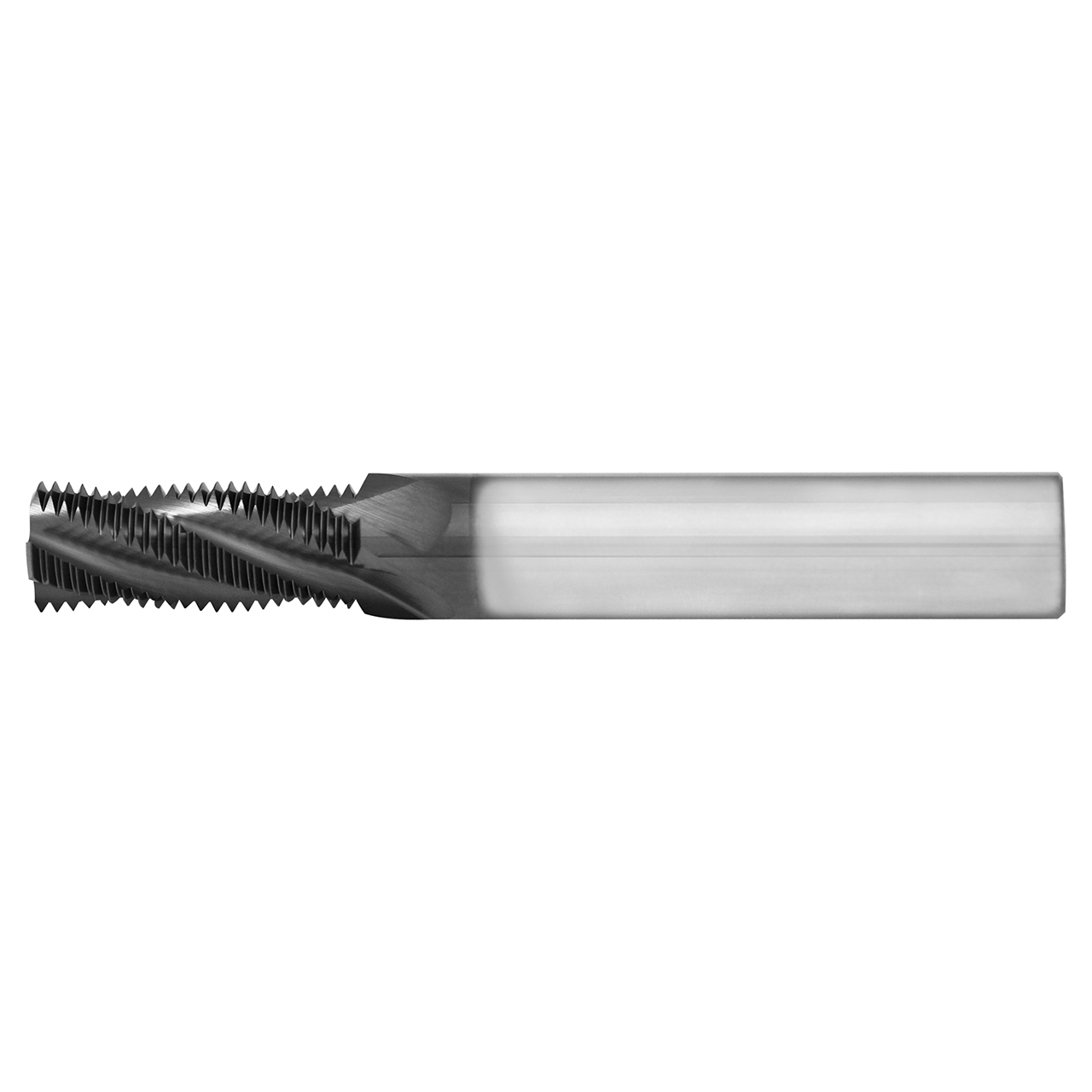

| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Cutter Diameter (Inch):
11/32"
Cutter Diameter (Decimal Inch):
0.3450"
Cutter Diameter (mm):
8.76mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
51/64"
Length of Cut (Decimal Inch):
0.8000"
Length of Cut (mm):
20.24mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
interval quantity:
1
