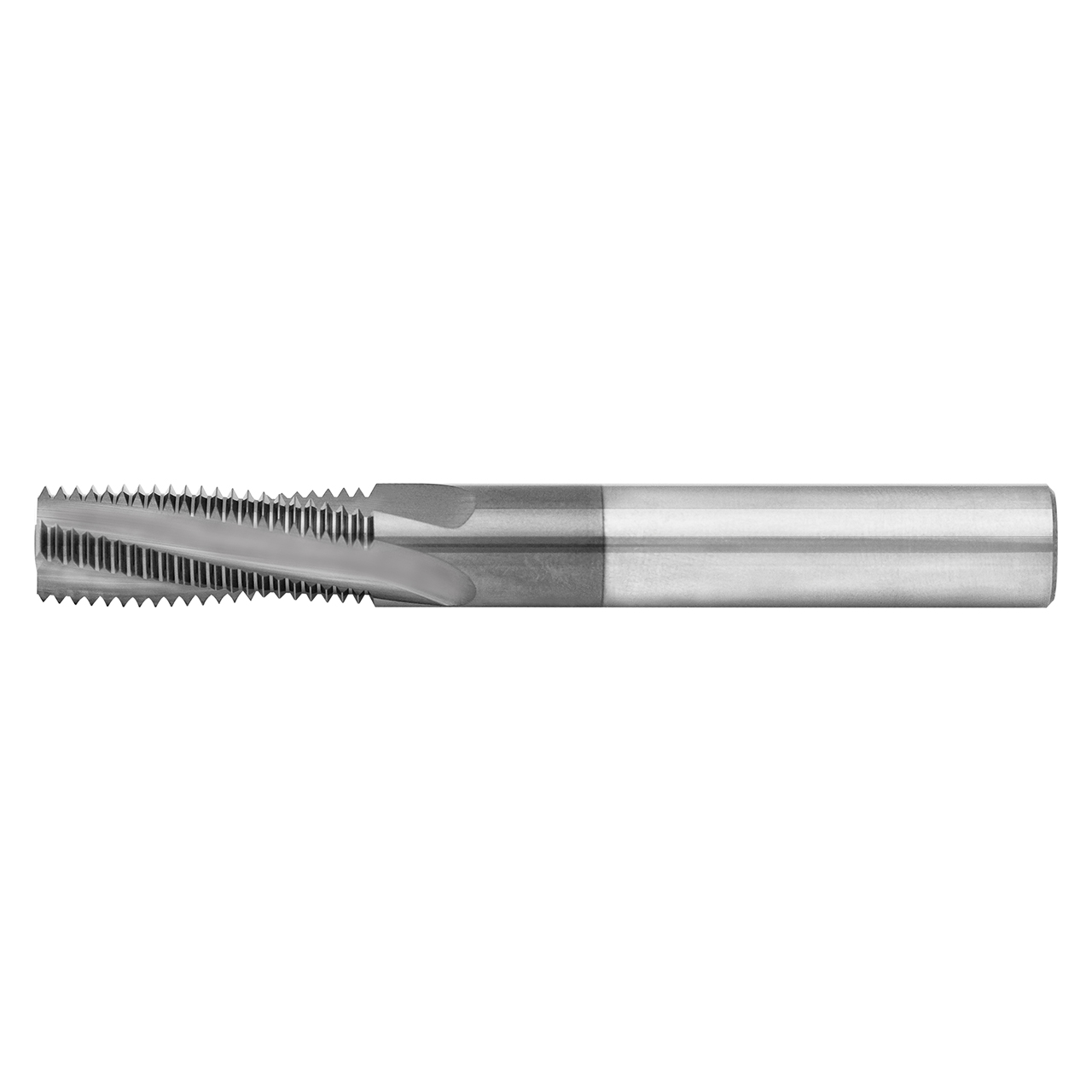

Features:
- Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
- Non-crest cutting allows maximum flexibility for plated and non-standard threads
- Long length-of-cut
Product Specifications
| Manufacturer Part Number | TMI180-20HA |
| Thread Size | 1/4-20" |
| Cutting Diameter (Decimal Inch) | 0.180" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Length of Cut (Decimal Inch) | 0.521" |
| Coating | AlTiN |
| Material | Solid Carbide |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Thread Size (Inch):
1/4-20"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
33/64"
Length of Cut (Decimal Inch):
0.5210"
Length of Cut (mm):
13.23mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1800"
Cutter Diameter (mm):
4.57mm
