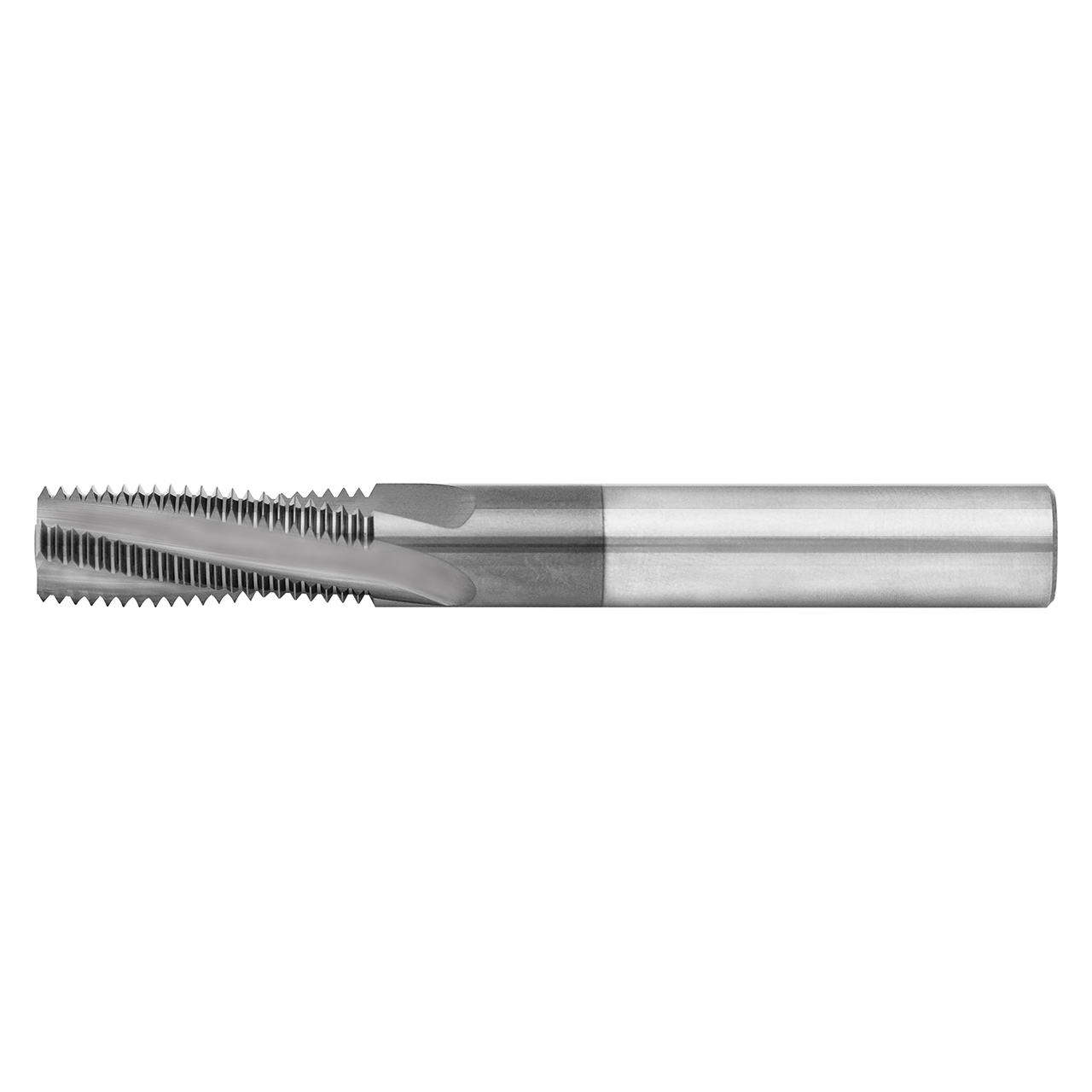

Scientific Cutting Tools TMI335-18H | 7/16-18" Thread x 0.335" Diameter x 0.375" Shank x 3.000" OAL 4 Flute UNCOATED Solid Carbide Helical Flute Thread Mill

$165.07
Brand:
Scientific Cutting Tools
Thread Size (Inch):
7/16-18"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
57/64"
Length of Cut (Decimal Inch):
0.8880"
Length of Cut (mm):
22.56mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
Cutter Diameter (Inch):
21/64"
Cutter Diameter (Decimal Inch):
0.3350"
Cutter Diameter (mm):
8.51mm
SKU:
17980003
Weight:
0.19 LBS
Shipping:
Free Shipping
Scientific Cutting Tools TMI335-18H | 7/16-18" Thread x 0.335" Diameter x 0.375" Shank x 3.000" OAL 4 Flute UNCOATED Solid Carbide Helical Flute Thread Mill

Features:

  • Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
  • Non-crest cutting allows maximum flexibility for plated and non-standard threads
  • Long length-of-cut

Product Specifications
Manufacturer Part NumberTMI335-18H
Thread Size7/16-18"
Cutting Diameter (Decimal Inch)0.335"
Shank Diameter (Decimal Inch)0.375"
Overall Length (Decimal Inch)3.000"
Length of Cut (Decimal Inch)0.888"
CoatingUncoated
MaterialSolid Carbide
Product TypeHelical Flute Thread Mill
