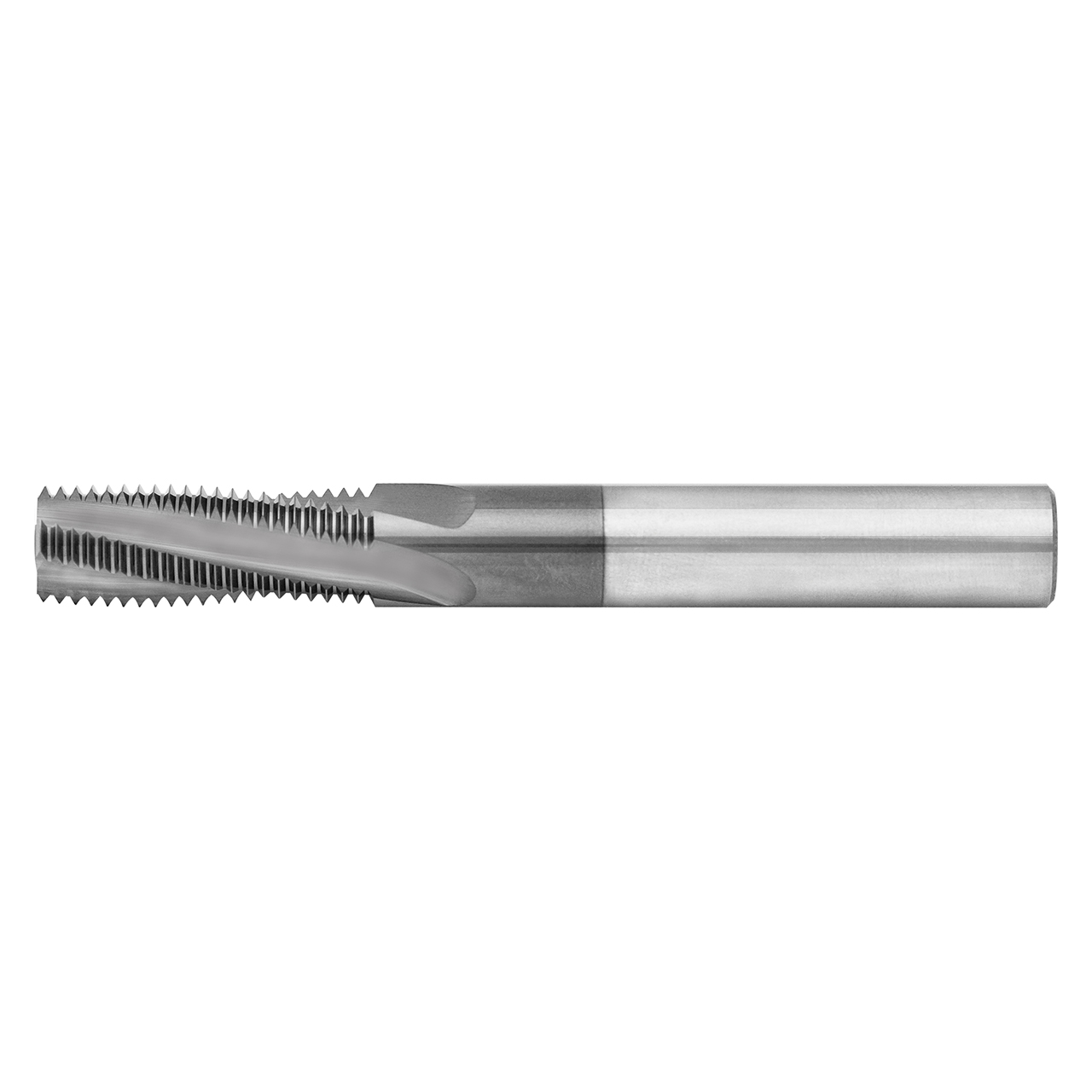

Scientific Cutting Tools TMI370-12H | 9/16-12" Thread x 0.370" Diameter x 0.375" Shank x 3.000" OAL 4 Flute UNCOATED Solid Carbide Helical Flute Thread Mill

$165.07
Brand:
Scientific Cutting Tools
Thread Size (Inch):
9/16-12"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
55/64"
Length of Cut (Decimal Inch):
0.8670"
Length of Cut (mm):
22.02mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.40mm
SKU:
17980006
Weight:
0.19 LBS
Shipping:
Free Shipping

Features:

  • Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
  • Non-crest cutting allows maximum flexibility for plated and non-standard threads
  • Long length-of-cut

Product Specifications
Manufacturer Part NumberTMI370-12H
Thread Size9/16-12"
Cutting Diameter (Decimal Inch)0.370"
Shank Diameter (Decimal Inch)0.375"
Overall Length (Decimal Inch)3.000"
Length of Cut (Decimal Inch)0.867"
CoatingUncoated
MaterialSolid Carbide
Product TypeHelical Flute Thread Mill
