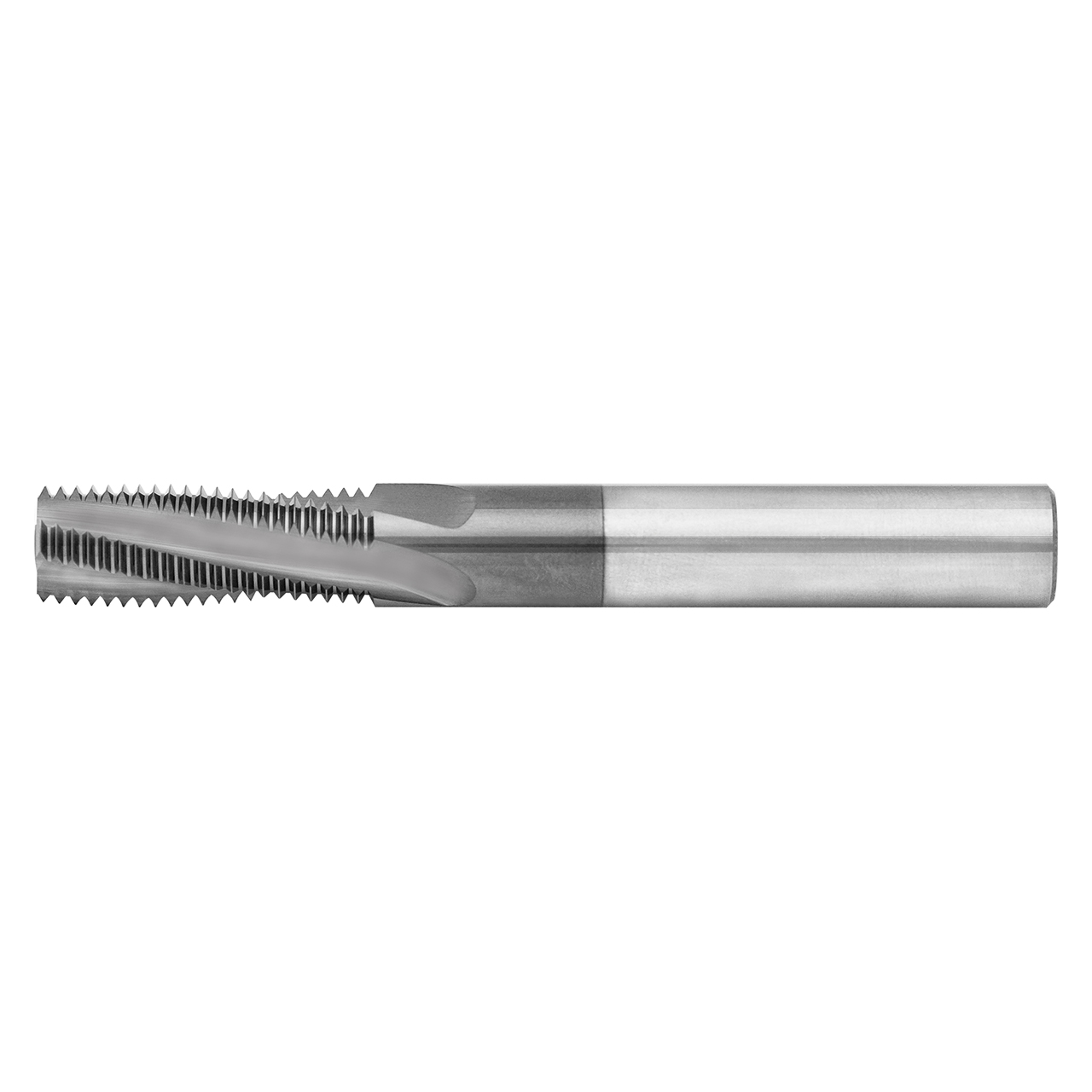

Scientific Cutting Tools TMI370-18HA | 9/16-18" Thread x 0.370" Diameter x 0.375" Shank x 3.000" OAL 4 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

$174.07
Brand:
Scientific Cutting Tools
Thread Size (Inch):
9/16-18"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
29/32"
Length of Cut (Decimal Inch):
0.9110"
Length of Cut (mm):
23.14mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.40mm
SKU:
17980013
Weight:
0.19 LBS
Shipping:
Free Shipping
Scientific Cutting Tools TMI370-18HA | 9/16-18" Thread x 0.370" Diameter x 0.375" Shank x 3.000" OAL 4 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

Features:

  • Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
  • Non-crest cutting allows maximum flexibility for plated and non-standard threads
  • Long length-of-cut

Product Specifications
Manufacturer Part NumberTMI370-18HA
Thread Size9/16-18"
Cutting Diameter (Decimal Inch)0.370"
Shank Diameter (Decimal Inch)0.375"
Overall Length (Decimal Inch)3.000"
Length of Cut (Decimal Inch)0.911"
CoatingAlTiN
MaterialSolid Carbide
Product TypeHelical Flute Thread Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Scientific Cutting Tools
Thread Size (Inch):
9/16-18"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
29/32"
Length of Cut (Decimal Inch):
0.9110"
Length of Cut (mm):
23.14mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.40mm
