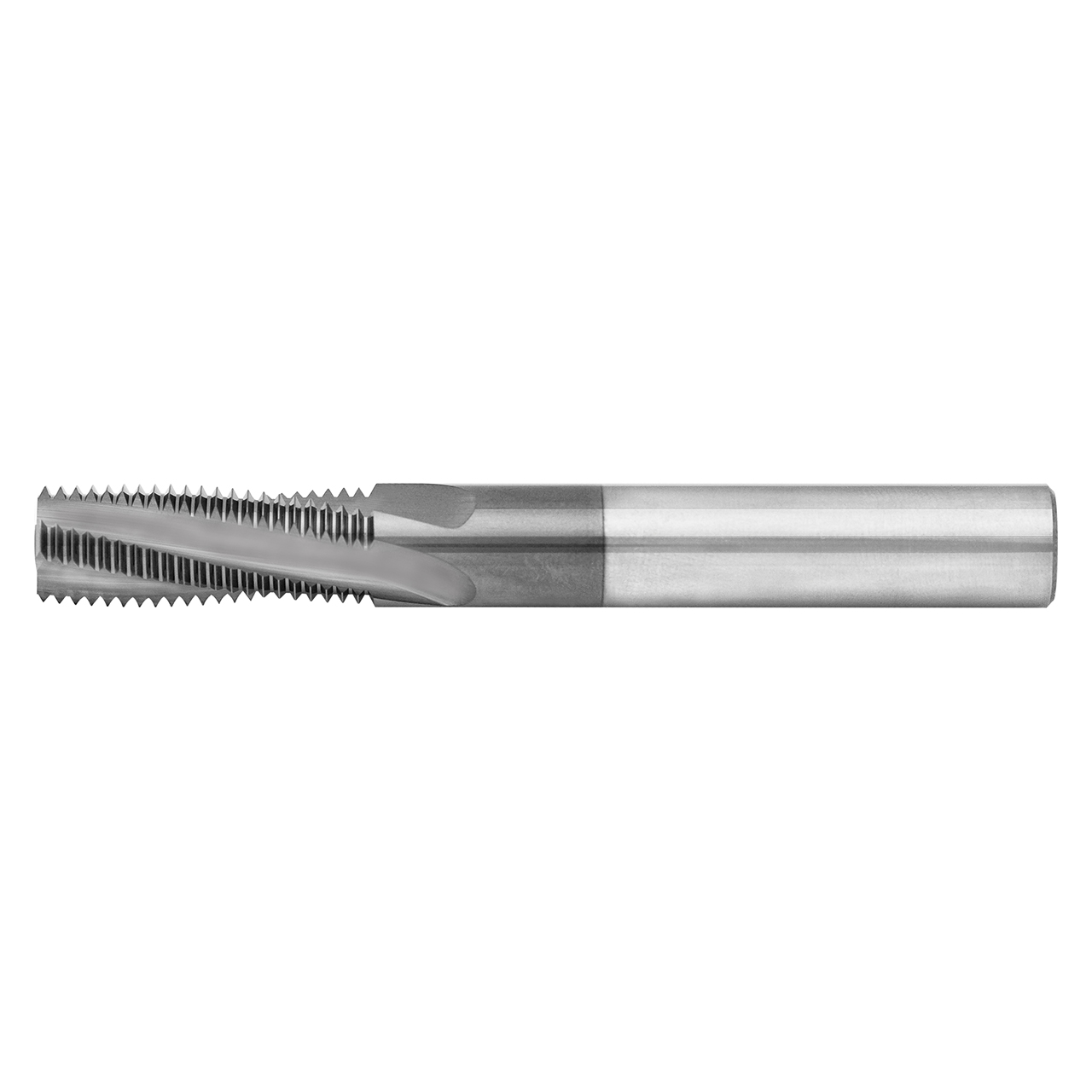

Scientific Cutting Tools TMI620-8HA | 1.0-8" Thread x 0.620" Diameter x 0.625" Shank x 4.000" OAL 5 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

$248.60
Brand:
Scientific Cutting Tools
Thread Size (Inch):
1.0-8"
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
5
Length of Cut (Inch):
1-35/64"
Length of Cut (Decimal Inch):
1.5500"
Length of Cut (mm):
39.37mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
15.75mm
SKU:
17980039
Weight:
0.66 LBS
Shipping:
Free Shipping
Scientific Cutting Tools TMI620-8HA | 1.0-8" Thread x 0.620" Diameter x 0.625" Shank x 4.000" OAL 5 Flute AlTiN Coated Solid Carbide Helical Flute Thread Mill

Features:

  • Cuts UNC, UNF, UNEF, UNS and UNJ (internal only)
  • Non-crest cutting allows maximum flexibility for plated and non-standard threads
  • Long length-of-cut

Product Specifications
Manufacturer Part NumberTMI620-8HA
Thread Size1.0-8"
Cutting Diameter (Decimal Inch)0.620"
Shank Diameter (Decimal Inch)0.625"
Overall Length (Decimal Inch)4.000"
Length of Cut (Decimal Inch)1.550"
CoatingAlTiN
MaterialSolid Carbide
Product TypeHelical Flute Thread Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Scientific Cutting Tools
Thread Size (Inch):
1.0-8"
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
5
Length of Cut (Inch):
1-35/64"
Length of Cut (Decimal Inch):
1.5500"
Length of Cut (mm):
39.37mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6200"
Cutter Diameter (mm):
15.75mm
