Features:

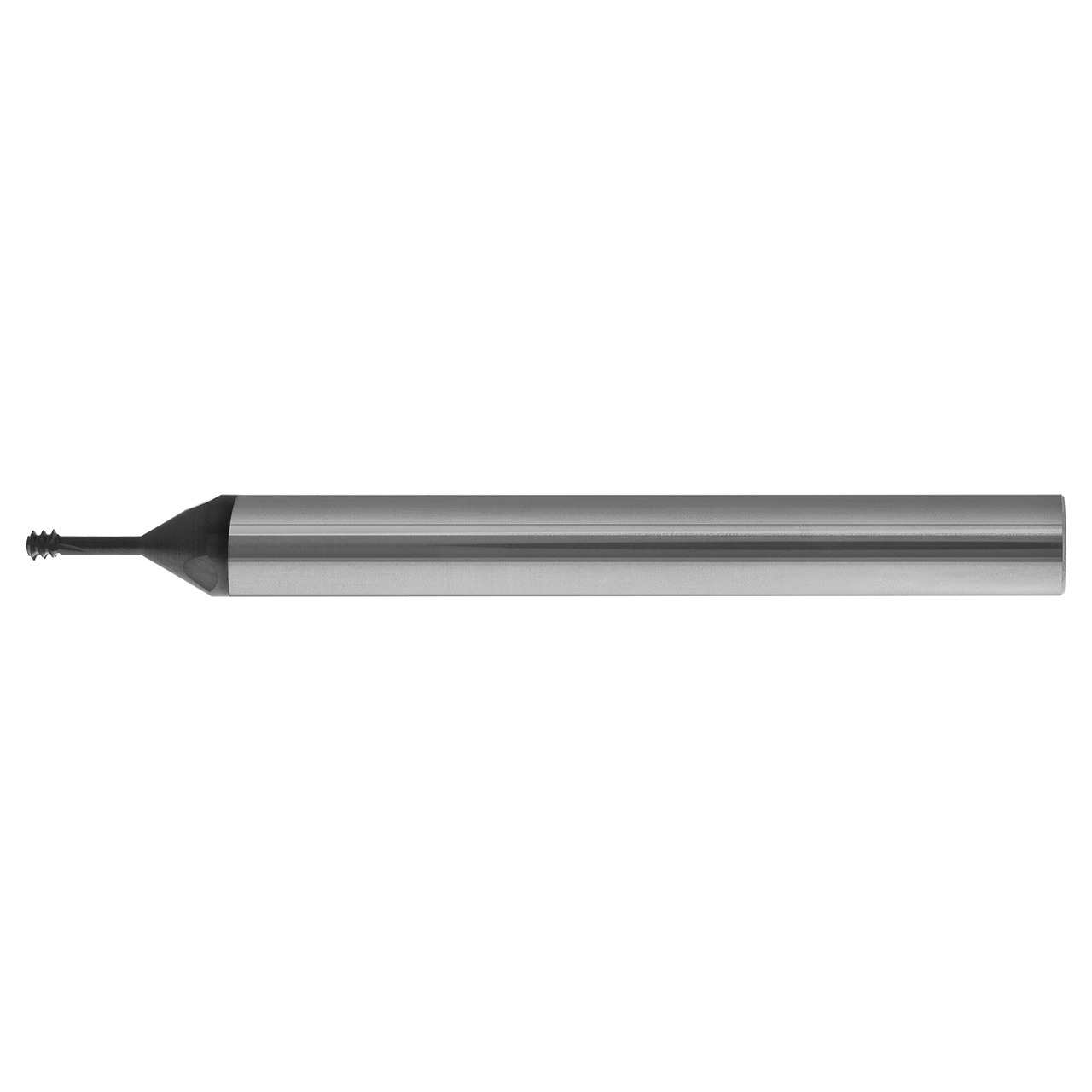

- Small thread milling is made easy with TMLR tools
- Economical cost per hole
- Minimal cutting pressure
- AlTiN+ coating for higher Surface Feet per Minute
Product Specifications
| Manufacturer Part Number | TMLR139-32EL |
| Cutting Diameter (Decimal Inch) | 0.139" |
| Neck Diameter (Decimal Inch) | 0.093" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.500" |
| Length (Decimal Inch) | 0.016" |
| Length of Cut (Decimal Inch) | 0.600" |
| Number of Flute | 3 |
| Thread Pitch | 10-32" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Cutter Diameter (Inch):
9/64"
Cutter Diameter (Decimal Inch):
0.1390"
Cutter Diameter (mm):
3.53mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
19/32"
Length of Cut (Decimal Inch):
0.6000"
Length of Cut (mm):
15.24mm
Finish/Coating:
Uncoated
Material:
Solid Carbide
interval quantity:
1
