Features:
- Small thread milling is made easy with TMLR tools
- Minimal cutting pressure
- Thread sizes starting from M1.4-.3mm
Product Specifications

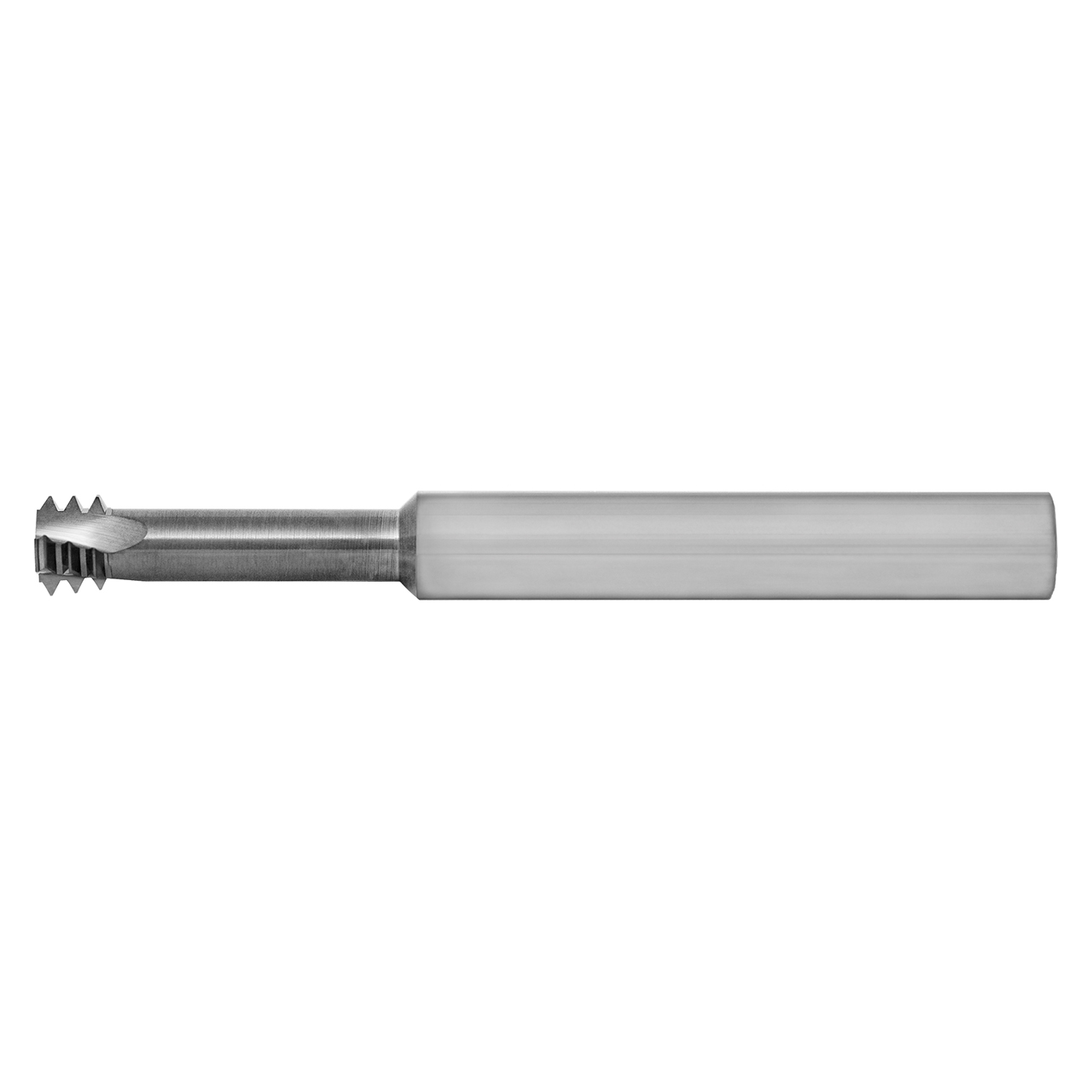

Manufacturer Part Number | TMLR8-1.25MMELA |
Thread Size | M8-1.25 |
Cutting Diameter (Decimal Inch) | 0.234" |
Shank Diameter (Decimal Inch) | 0.250" |
Neck Diameter (Decimal Inch) | 0.162" |
Overall Length (Decimal Inch) | 2.500" |
Length of Cut (Decimal Inch) | 0.850" |
Coating | AlTiN |
Material | Solid Carbide |
Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Thread Size (mm):
M8-1.25
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
27/32"
Length of Cut (Decimal Inch):
0.8500"
Length of Cut (mm):
21.59mm
Finish/Coating:
AlTiN
Material:
Solid Carbide
Cutter Diameter (Inch):
15/64"
Cutter Diameter (Decimal Inch):
0.2340"
Cutter Diameter (mm):
5.94mm
