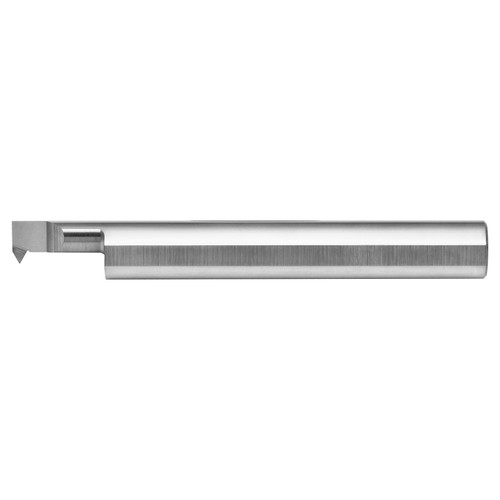

Scientific Cutting Tools TTQ120400A | 24 to 56 TPI x 0.120" Minimum Bore Diameter x 0.001" Radius x 0.187" Shank x 2.000" OAL AlTiN Coated Solid Carbide Single Point Threading Tool

$50.96
Brand:
Scientific Cutting Tools
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Material:
Solid Carbide
interval quantity:
1
SKU:
10243383
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Scientific Cutting Tools TTQ120400A | 24 to 56 TPI x 0.120" Minimum Bore Diameter x 0.001" Radius x 0.187" Shank x 2.000" OAL AlTiN Coated Solid Carbide Single Point Threading Tool

Features:

  • 60 Degree thread form for cutting UN, ISO, and NPT threads
  • Positive rake improves surface finish and reduces burrs
  • AlTiN+ coating provides better surface finish

Product Specifications
Manufacturer Part NumberTTQ120400A
Minimum Bore Diameter (Decimal Inch)0.120"
Maximum Bore Depth (Decimal Inch)0.400"
Off Set (Decimal Inch)0.030"
Radius (Decimal Inch)0.001"
Shank Diameter (Decimal Inch)0.187"
Overall Length (Decimal Inch)2.000"
Length (Decimal Inch)0.021"
Recommended TPI24 to 56 TPI
MaterialSolid Carbide
CoatingAlTiN
Product TypeSingle Point Threading Tool

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
