Product Specifications

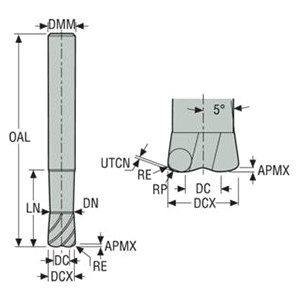

| Manufacturer Part Number | 03043608 |
| Cutting Diameter (Decimal Inch) | 0.188" |
| Cutting Diameter (mm) | 4.76mm |
| Cutting Diameter 1 (Decimal Inch) | 0.319" |
| Cutting Diameter 1 (mm) | 8.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.375" |
| Maximum Cutting Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Neck Diameter (Decimal Inch) | 0.329" |
| Neck Diameter (mm) | 8.36mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.488" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.38mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.691" |
| Maximum Helical Interpolation Hole Diameter (mm) | 17.56mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.018" |
| Cutting Edge Effective Length (mm) | 0.46mm |
| Neck Length (Decimal Inch) | 2.625" |
| Neck Length (mm) | 66.68mm |
| Neck Length 1 (Decimal Inch) | 2.625" |
| Neck Length 1 (mm) | 66.68mm |
| Minimum Clamping Length (Decimal Inch) | 1.563" |
| Minimum Clamping Length (mm) | 39.69mm |
| Length Variant Cataloque | 3 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.018" |
| Theoretical Cutting Edge Length (mm) | 0.46mm |
| Overall Length (Decimal Inch) | 4.500" |
| Overall Length (mm) | 114.30mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.018" |
| Maximum Depth of Cut (mm) | 0.46mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.178" |
| Curved Cutting Edge Radius (mm) | 4.52mm |
| Corner Radius (Decimal Inch) | 0.028" |
| Corner Radius (mm) | 0.71mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (Decimal Inch) | 0.043" |
| Programming Radius (mm) | 1.10mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Neck Angle (Degree) | 0.5 Degree |
| Rake Radial Angle (Degree) | 0.5 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | SN200R |
| Cutting Geometry Type Technical | SN200R |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1874"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Corner Radius (Inch):
22/31"
Corner Radius (Decimal Inch):
0.0280"
Corner Radius (mm):
0.71mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3800"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
114-3/10"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.30mm
Cutting Direction:
Right Hand
interval quantity:
1
