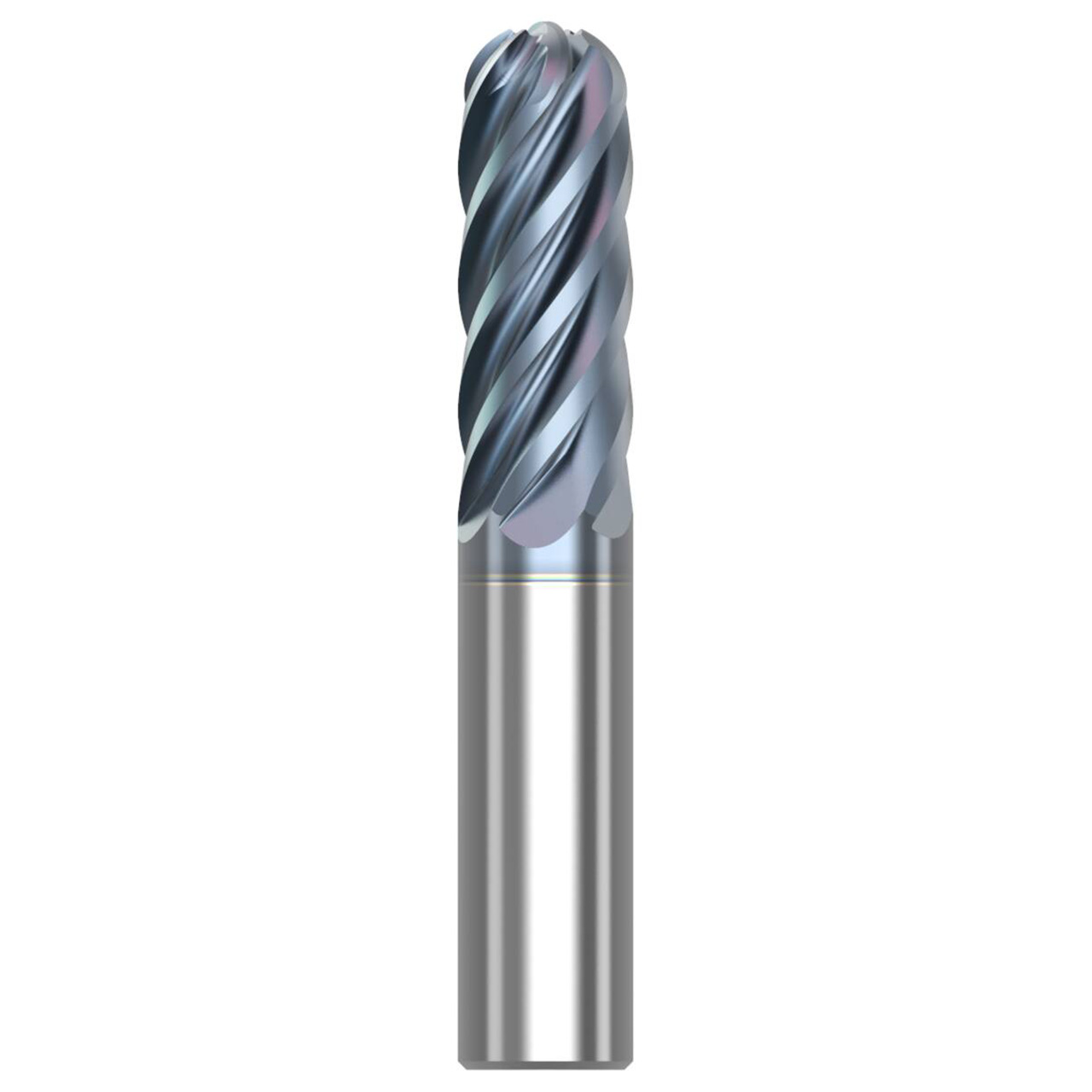

| Manufacturer Part Number | 10115775 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter 1 (Decimal Inch) | 0.750" |
| Cutting Diameter 1 (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.350" |
| Maximum Helical Interpolation Hole Diameter (mm) | 34.29mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.975" |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.77mm |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 2.500" |
| Cutting Edge Effective Length (mm) | 63.50mm |
| Maximum Depth of Cut (Decimal Inch) | 2.500" |
| Maximum Depth of Cut (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.375" |
| Corner Radius (mm) | 9.53mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | SB638 |
| Cutting Geometry Type Technical | SB638 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |
| Material | Carbide |
| Coating | HTA |
| Product Type | Ball End Mill |
