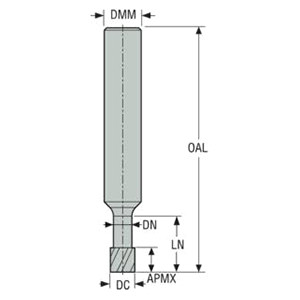

Product Specifications
| Manufacturer Part Number | 17000522 |
| Cutting Diameter (Decimal Inch) | 0.180" |
| Cutting Diameter (mm) | 4.57mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.213" |
| Minimum Cutting Diameter (mm) | 5.41mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.188" |
| Connection Diameter Machine Side (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.188" |
| Shank Diameter (mm) | 4.76mm |
| Neck Diameter (Decimal Inch) | 0.117" |
| Neck Diameter (mm) | 2.97mm |
| Thread Diameter Size | 1/4 |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Protruding Length (Decimal Inch) | 1.102" |
| Protruding Length (mm) | 28.00mm |
| Shank Length (Decimal Inch) | 1.625" |
| Shank Length (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Maximum Depth of Cut (mm) | 2.79mm |
| Maximum Depth of Cut (Decimal Inch) | 0.110" |
| Cutting Direction | Right Hand |
| Number of Flute | 3 |
| Tooth Count | 3 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutter Diameter (Inch):
9/50"
Cutter Diameter (Decimal Inch):
0.1800"
Cutter Diameter (mm):
4.57mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1880"
Shank Diameter (mm):
4.76mm
Number of Flutes:
3
interval quantity:
1
