Seco Niagara Cutter 17002402 | ME230.020F3S.0Z2 0.51mm Diameter x 3.18mm Shank x 38.10mm OAL x 30 Degree Helix Angle 2 Flute Uncoated Carbide Square End Mill (N59585)

$27.90 $15.35
(You save $12.55)
Brand:
Seco Tools
Number of Flutes:
2
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25015008
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Niagara Cutter 17002402 | ME230.020F3S.0Z2 0.51mm Diameter x 3.18mm Shank x 38.10mm OAL x 30 Degree Helix Angle 2 Flute Uncoated Carbide Square End Mill (N59585)

Related Products

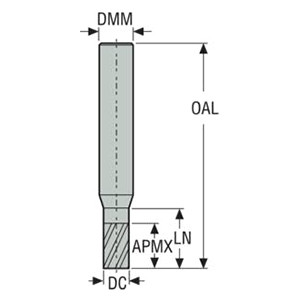

Product Specifications
Manufacturer Part Number17002402
Cutting Diameter (Decimal Inch)0.020"
Cutting Diameter (mm)0.51mm
Cutting Diameter 1 (Decimal Inch)0.020"
Cutting Diameter 1 (mm)0.51mm
Connection Diameter Machine Side (Decimal Inch)0.125"
Connection Diameter Machine Side (mm)3.18mm
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (mm)3.18mm
Neck Diameter (Decimal Inch)0.020"
Neck Diameter (mm)0.51mm
Minimum Helical Interpolation Hole Diameter (Decimal Inch)0.026"
Minimum Helical Interpolation Hole Diameter (mm)0.66mm
Maximum Helical Interpolation Hole Diameter (Decimal Inch)0.039"
Maximum Helical Interpolation Hole Diameter (mm)0.99mm
Cutting Edge Effective Length (Decimal Inch)0.060"
Cutting Edge Effective Length (mm)1.52mm
Neck Length (Decimal Inch)0.060"
Neck Length (mm)1.52mm
Neck Length 1 (Decimal Inch)0.060"
Neck Length 1 (mm)1.52mm
Minimum Clamping Length (Decimal Inch)1.102"
Minimum Clamping Length (mm)28.00mm
Length Variant Cataloque3
Theoretical Cutting Edge Length (Decimal Inch)0.060"
Theoretical Cutting Edge Length (mm)1.52mm
Overall Length (Decimal Inch)1.500"
Overall Length (mm)38.10mm
Number of Flute2
Pheripheral Cutting Edge Count2
Maximum Depth of Cut (Decimal Inch)0.060"
Maximum Depth of Cut (mm)1.52mm
Cutting Edge Count2
Face Cutting Edge Count2
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)94 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Flute Helix Angle (Degree)30 Degree
Rake Radial Angle (Degree)7 Degree
Maximum Ramping Angle (Degree)0.5 Degree
Cutting DirectionRight Hand
Flute Helix HandRight Hand
Center Cutting CapabilityYes
Cutting Geometry TypeME230
Cutting Geometry Type TechnicalME230
Internal Coolant ChannelNo
Cutting Item Material TypeCarbide
Shank TypeCylindrical
MaterialCarbide
CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
