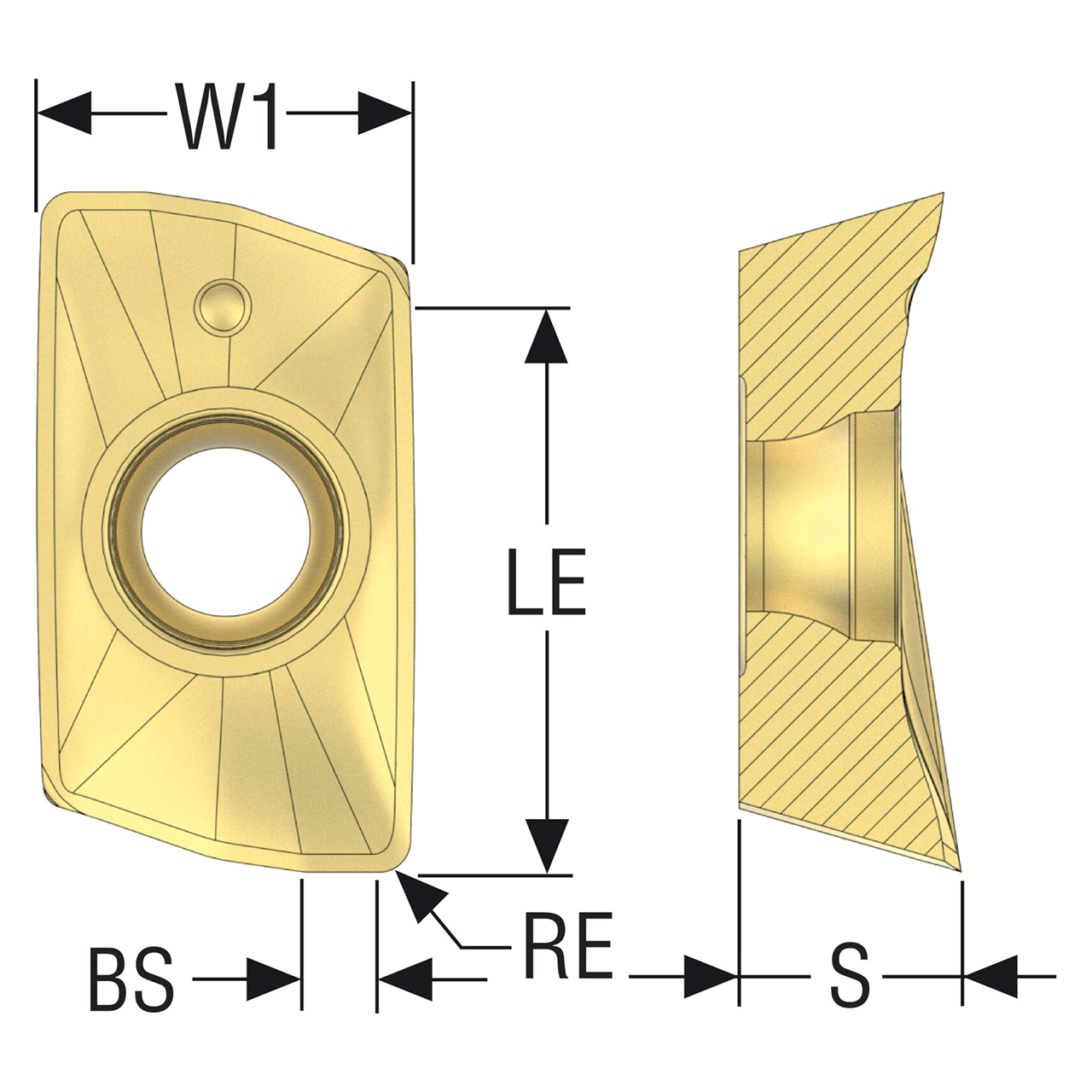

Seco Tools 00000912 | XOMX180608R-M10 0.032" Corner Radius x 0.252" Thickness 2 Cutting Edge Carbide Milling Insert

$33.80 $26.03
(You save $7.77)
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
41/93"
Width (Decimal Inch):
0.4409"
Width (mm):
11.20mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2520"
Thickness (mm):
6.40mm
interval quantity:
10
SKU:
23272803
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 00000912 | XOMX180608R-M10 0.032" Corner Radius x 0.252" Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number00000912
Fixing Hole Diameter (Decimal Inch)0.197"
Fixing Hole Diameter (mm)5.00mm
Cutting Edge Effective Length (Decimal Inch)0.669"
Cutting Edge Effective Length (mm)17.00mm
Wiper Edge Length (Decimal Inch)0.095"
Wiper Edge Length (mm)2.40mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.252"
Insert Thickness (mm)6.40mm
Cutting Edge Count2
Clearance Angle Major (Degree)15 Degree
Insert Rake Angle (Degree)22.4 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM10
Pocket Seat Code of The CutterXO.X1806
Insert Size And ShapeXOMX1806
MaterialCarbide
Product TypeMilling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
