Product Specifications
| Manufacturer Part Number | 00012939 |
| Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Protruding Length (mm) | 70.00mm |
| Shank Length (mm) | 92.00mm |
| Overall Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 7.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 26200 rpm |
| Shank Type | Weldon |

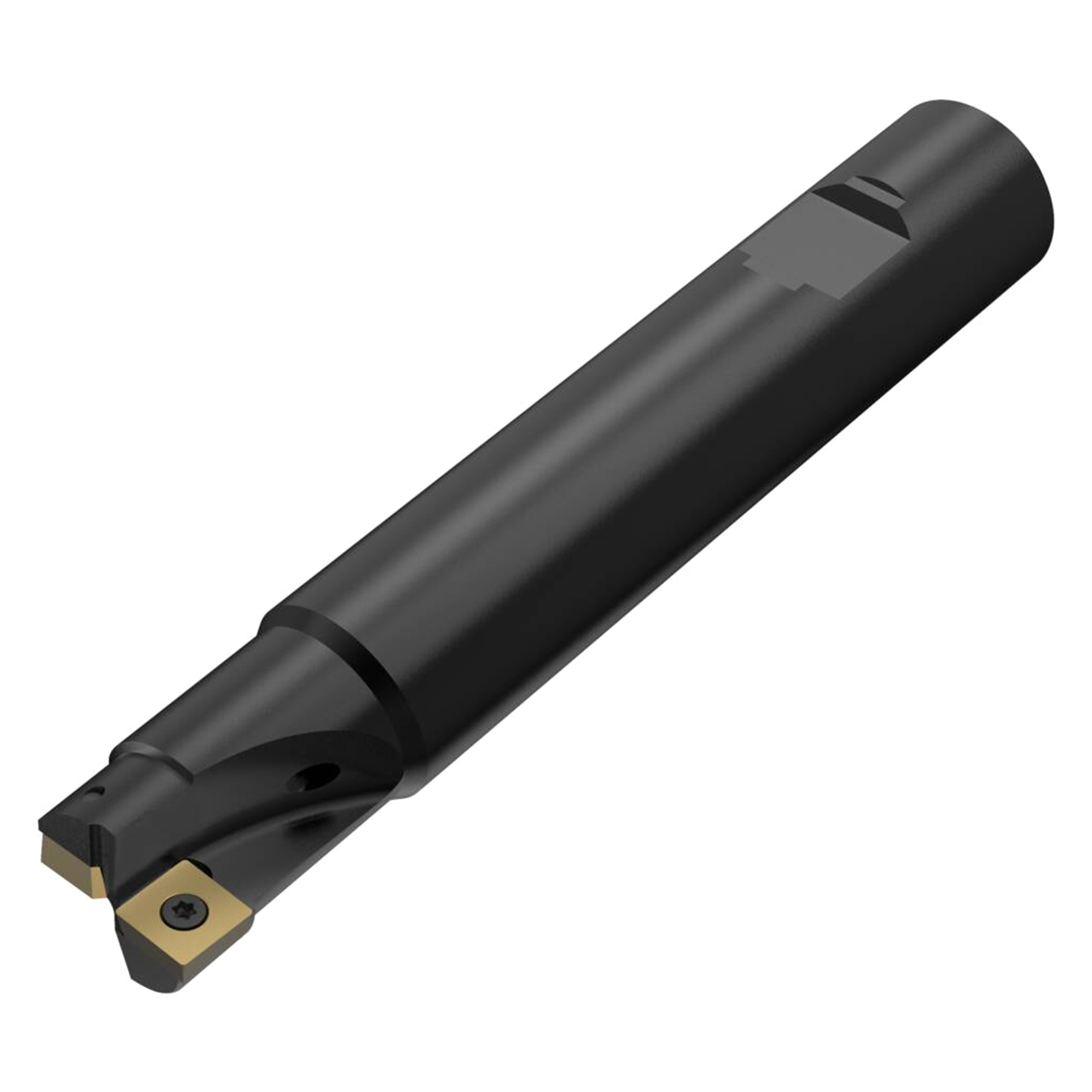

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
37/47"
Cutting Diameter (Decimal Inch):
0.7874"
Cutting Diameter (mm):
20.00mm
Shank Type:
Weldon
Shank Diameter (Inch):
37/47"
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Overall Length (Inch):
4-21/29"
Overall Length (Decimal Inch):
4.7244"
Overall Length (mm):
120.00mm
interval quantity:
1
