Seco Tools 00023229 | 905008 0.80mm Diameter x 3.00mm Shank x 0.05mm Corner Radius x 40.00mm OAL x 20 Degree Helix Angle 2 Flute MEGA Coated Carbide Corner Radius End Mill

$113.00 $106.22
(You save $6.78)
Brand:
Seco Tools
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA
Overall Length (Inch):
40"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25268511
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 00023229 | 905008 0.80mm Diameter x 3.00mm Shank x 0.05mm Corner Radius x 40.00mm OAL x 20 Degree Helix Angle 2 Flute MEGA Coated Carbide Corner Radius End Mill

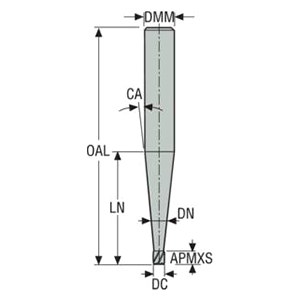

Product Specifications
Manufacturer Part Number00023229
Cutting Diameter (mm)0.80mm
Cutting Diameter 1 (mm)0.80mm
Connection Diameter Machine Side (mm)3.00mm
Shank Diameter (mm)3.00mm
Neck Diameter (mm)0.85mm
Minimum Helical Interpolation Hole Diameter (mm)1.04mm
Maximum Helical Interpolation Hole Diameter (mm)1.50mm
Cutting Edge Effective Length (mm)1.20mm
Neck Length (mm)1.40mm
Neck Length 1 (mm)1.40mm
Minimum Clamping Length (mm)28.00mm
Length Variant Cataloque1
Theoretical Cutting Edge Length (mm)1.20mm
Overall Length (mm)40.00mm
Number of Flute2
Pheripheral Cutting Edge Count2
Maximum Depth of Cut (mm)1.20mm
Corner Radius (mm)0.05mm
Axial Runout (mm)0.01mm
Radial Runout (mm)0.01mm
Cutting Edge Count2
Face Cutting Edge Count2
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)92.5 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Collision Angle (Degree)11.5 Degree
Flute Helix Angle (Degree)20 Degree
Rake Radial Angle (Degree)4 Degree
Cutting DirectionRight Hand
Flute Helix HandRight Hand
Center Cutting CapabilityYes
Cutting Geometry TypeJM905
Cutting Geometry Type TechnicalJM905
Internal Coolant ChannelNo
Cutting Item Material TypeCarbide
Shank TypeCylindrical
MaterialCarbide
CoatingMEGA-T
Product TypeCorner Radius End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA
Overall Length (Inch):
40"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Cutting Direction:
Right Hand
interval quantity:
1
