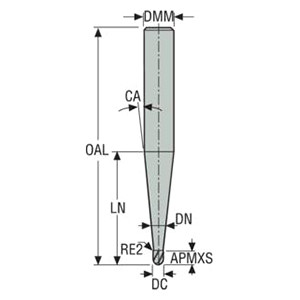

Product Specifications
| Manufacturer Part Number | 00023259 |
| Cutting Diameter (mm) | 0.80mm |
| Cutting Diameter 1 (mm) | 0.80mm |
| Connection Diameter Machine Side (mm) | 3.00mm |
| Shank Diameter (mm) | 3.00mm |
| Neck Diameter (mm) | 0.85mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 1.04mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 1.44mm |
| Cutting Edge Effective Length (mm) | 0.80mm |
| Minimum Clamping Length (mm) | 28.00mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (mm) | 0.80mm |
| Overall Length (mm) | 40.00mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (mm) | 0.80mm |
| Profile Radius (mm) | 0.40mm |
| Corner Radius (mm) | 0.40mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Collision Angle (Degree) | 13.5 Degree |
| Flute Helix Angle (Degree) | 20 Degree |
| Rake Radial Angle (Degree) | 4 Degree |
| Rake Orthogonal Angle (Degree) | 4 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JM915 |
| Cutting Geometry Type Technical | JM915 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | MEGA-T |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Number of Flutes:
2
Material:
Carbide
Shank Type:
Cylindrical
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Finish/Coating:
MEGA-T
Cutting Direction:
Right Hand
Helix Angle:
20 Degree
interval quantity:
1
