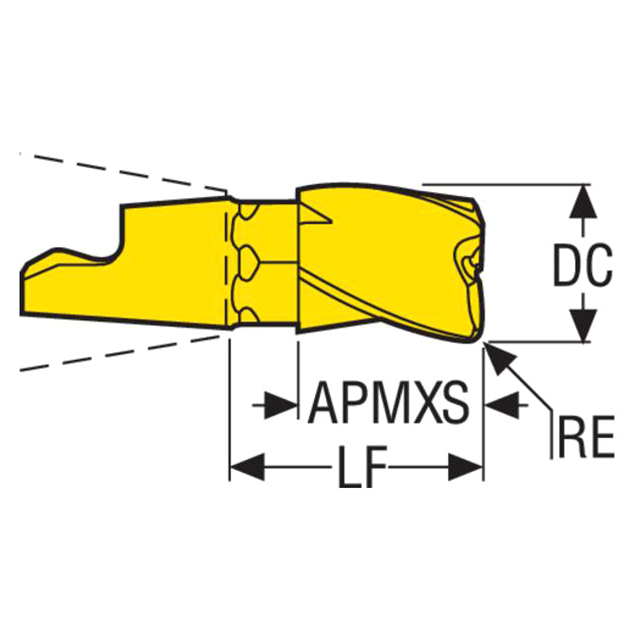

Seco Tools 00023715 | MM08-08009-R05A30-M03 8.00mm Diameter x 0.50mm Corner Radius x 90 Degree Cutting Edge Angle PVD Coated Carbide Slotting Milling Tip Insert

$73.62
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
23/73"
Cutting Diameter (Decimal Inch):
0.3150"
Cutting Diameter (mm):
8.00mm
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
interval quantity:
1
SKU:
55071839
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number00023715
Cutting Diameter (mm)8.00mm
Minimum Helical Interpolation Hole Diameter (mm)9.80mm
Maximum Helical Interpolation Hole Diameter (mm)14.80mm
Cutting Edge Effective Length (mm)10.00mm
Functional Length (mm)13.00mm
Maximum Depth of Cut (mm)10.00mm
Corner Radius (mm)0.50mm
Cutting Edge Count1
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Flute Helix Angle (Degree)30 Degree
Rake Radial Angle (Degree)10 Degree
Maximum Ramping Angle (Degree)15 Degree
Coolant Entry Style Code1
Coolant Supply Property1
Coolant Exit Style Code3
MaterialCarbide
Product TypeSlotting Milling Tip Insert
