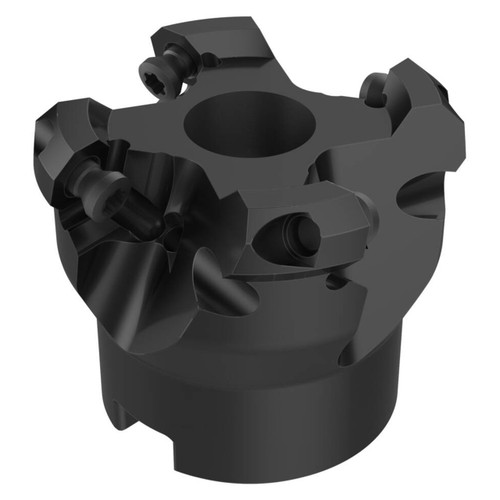

| Manufacturer Part Number | 00026516 |
| Cutting Diameter (mm) | 40.00mm |
| Connection Bore Diameter (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 49.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Functional Length (mm) | 40.00mm |
| Keyway Width (mm) | 8.40mm |
| Maximum Depth of Cut (mm) | 3.50mm |
| Depth of Key Way (mm) | 5.60mm |
| Tool Cutting Edge Angle (Degree) | 43 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 43 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 13200 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | OF..05 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Insert Shape Code | O |
| Product Type | Indexable Face Mills |
