Product Specifications

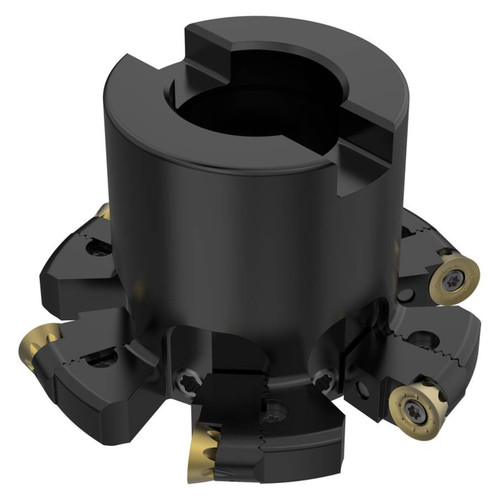

| Manufacturer Part Number | 00030418 |
| Cutting Diameter (mm) | 127.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Maximum Cutting Diameter (mm) | 127.00mm |
| Contact Surface Diameter Machine Side (mm) | 58.00mm |
| Functional Length (mm) | 50.00mm |
| Keyway Width (mm) | 14.40mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Depth of Key Way (mm) | 8.00mm |
| Maximum Cutting Depth (mm) | 33.30mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 8400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | RP..1204 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
17/72"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
Cutter Diameter (Inch):
127"
Cutter Diameter (Decimal Inch):
5.0000"
Cutter Diameter (mm):
127.00mm
interval quantity:
1
