| Manufacturer Part Number | 00031596 |
| Cutting Diameter (mm) | 16.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Protruding Length (mm) | 117.00mm |
| Shank Length (mm) | 115.00mm |
| Overall Length (mm) | 165.00mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Cutting Pitch Density | Normal |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 28500 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Cylindrical |

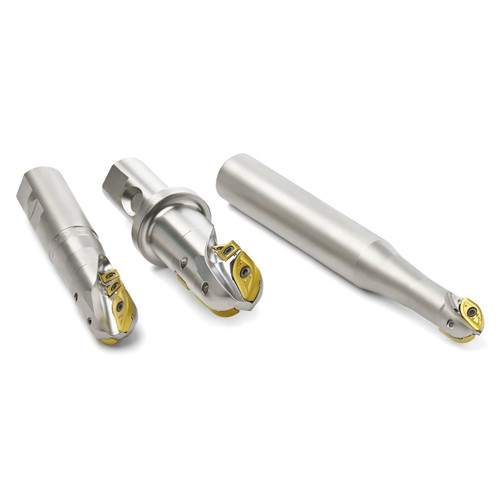

| Product Type | Indexable Ball Nose End Mill |
