| Manufacturer Part Number | 00035427 |

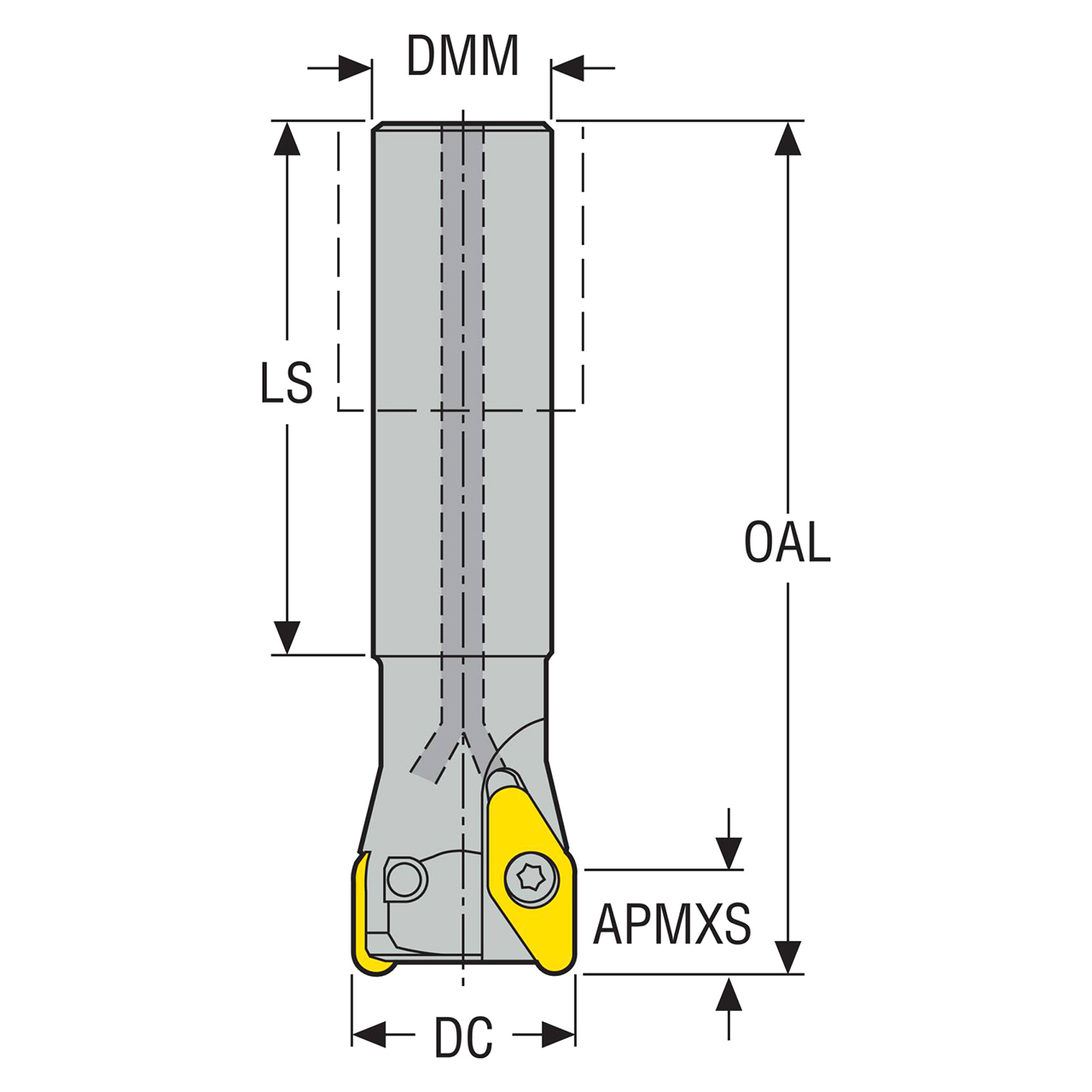

| Cutting Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 72.00mm |
| Protruding Length (mm) | 90.00mm |
| Shank Length (mm) | 105.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Maximum Rotational Speed (rpm) | 35000 rpm |
| Shank Type | Cylindrical |
| Product Type | Indexable Copy End Mill |
