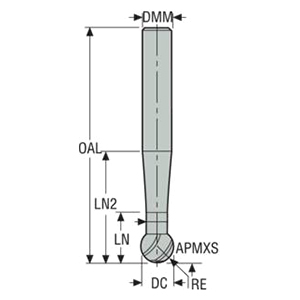

| Manufacturer Part Number | 00040371 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter 1 (mm) | 12.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 7.20mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.60mm |
| Cutting Edge Effective Length (mm) | 9.40mm |
| Neck Length (mm) | 17.20mm |
| Neck Length 1 (mm) | 17.20mm |
| Neck Length 2 (mm) | 31.80mm |
| Minimum Clamping Length (mm) | 45.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 9.40mm |
| Overall Length (mm) | 125.00mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (mm) | 9.40mm |
| Corner Radius (mm) | 6.00mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 15 Degree |
| Rake Radial Angle (Degree) | 4 Degree |
| Rake Orthogonal Angle (Degree) | 4 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Sphere Angle (Degree) | 250 Degree |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JH160 |
| Cutting Geometry Type Technical | JH160 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | MEGA-64 |
| Product Type | Ball End Mill |
