Product Specifications
| Manufacturer Part Number | 00055943 |
| Body Diameter 1 (Decimal Inch) | 2.205" |
| Body Diameter 1 (mm) | 56.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.098" |
| Minimum Connection Bore Diameter (mm) | 2.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 3.701" |
| Body Length (mm) | 94.00mm |
| Functional Length (Decimal Inch) | 4.724" |
| Functional Length (mm) | 120.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |

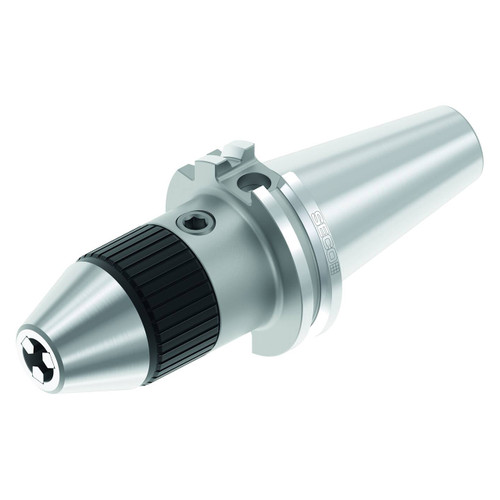

| Product Type | Drill Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Overall Length (Inch):
6-19/64"
Overall Length (Decimal Inch):
6.2990"
Overall Length (mm):
160.00mm
interval quantity:
1
