| Manufacturer Part Number | 00056751 |
| Body Diameter (Decimal Inch) | 1.260" |
| Body Diameter (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.709" |
| Connection Bore Diameter (mm) | 18.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 1.535" |
| Minimum Cutting Diameter (mm) | 39.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 2.008" |
| Maximum Cutting Diameter (mm) | 51.00mm |
| Body Length (Decimal Inch) | 10.039" |
| Body Length (mm) | 255.00mm |
| Functional Length (Decimal Inch) | 14.961" |
| Functional Length (mm) | 380.00mm |
| Protruding Length (Decimal Inch) | 12.402" |
| Protruding Length (mm) | 315.00mm |
| Usable Length (Decimal Inch) | 12.598" |
| Usable Length (mm) | 320.00mm |
| Overall Length (Decimal Inch) | 12.480" |
| Overall Length (mm) | 317.00mm |

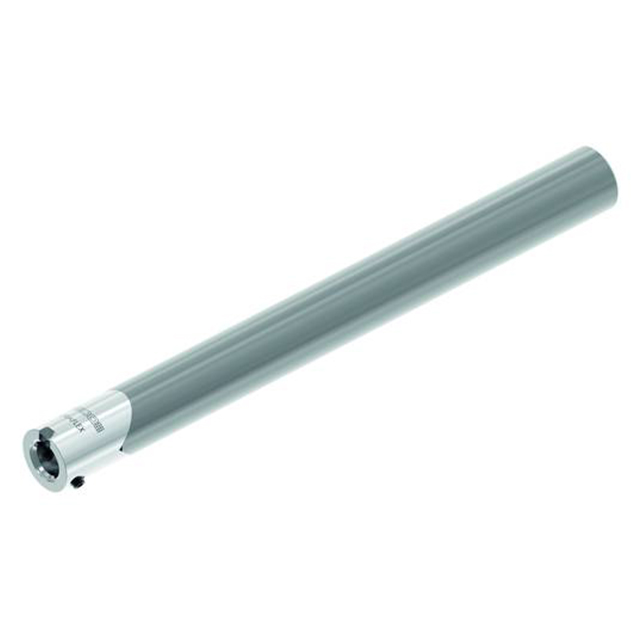

| Product Type | Boring Head Shank |
