| Manufacturer Part Number | 00076162 |
| Body Diameter 1 (Decimal Inch) | 1.102" |
| Body Diameter 1 (mm) | 28.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 1.929" |
| Body Length (mm) | 49.00mm |
| Functional Length (Decimal Inch) | 2.953" |
| Functional Length (mm) | 75.00mm |
| Protruding Length (Decimal Inch) | 2.953" |
| Protruding Length (mm) | 75.00mm |
| Clamping Length (Decimal Inch) | 1.260" |
| Clamping Length (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 4.213" |
| Overall Length (mm) | 107.00mm |
| Connection Bore Depth (mm) | 45.00mm |
| Data Chip Provision | 1 |

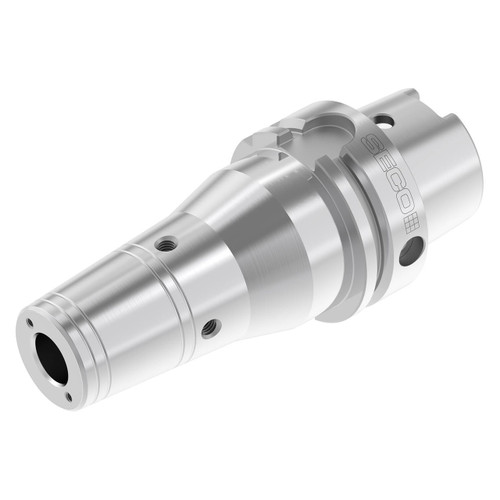

| Product Type | Shrink-Fit Tool Holder |
