| Manufacturer Part Number | 00084027 |

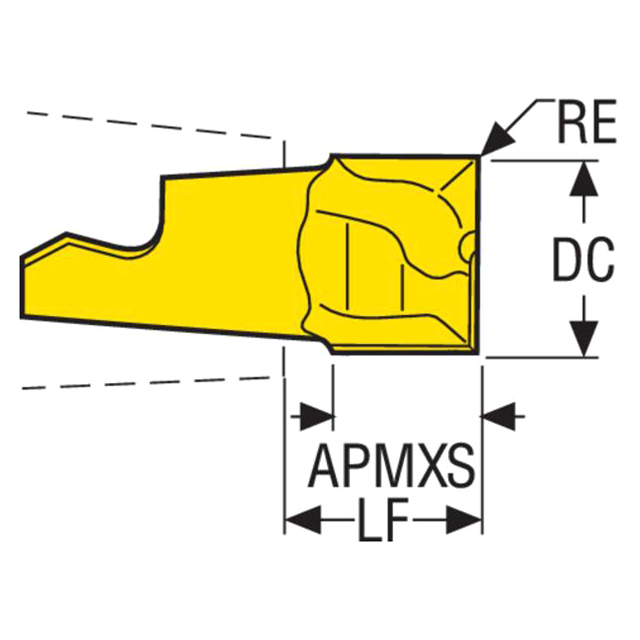

| Cutting Diameter (mm) | 10.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.20mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.00mm |
| Cutting Edge Effective Length (mm) | 6.75mm |
| Functional Length (mm) | 8.38mm |
| Maximum Depth of Cut (mm) | 6.70mm |
| Corner Radius (mm) | 0.40mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Material | Carbide |
| Product Type | Slotting Milling Tip Insert |
