Product Specifications
| Manufacturer Part Number | 00087568 |
| Cutting Diameter (Decimal Inch) | 0.390" |
| Cutting Diameter (mm) | 9.91mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Diameter (Decimal Inch) | 0.310" |
| Body Diameter (mm) | 7.87mm |
| Shank Length (Decimal Inch) | 3.610" |
| Shank Length (mm) | 91.69mm |
| Overall Length (Decimal Inch) | 4.140" |
| Overall Length (mm) | 105.16mm |
| Functional Length (Decimal Inch) | 0.530" |
| Functional Length (mm) | 13.46mm |
| Maximum Depth of Cut (Decimal Inch) | 0.510" |
| Maximum Depth of Cut (mm) | 12.95mm |
| Shank Type | Weldon |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 1 |

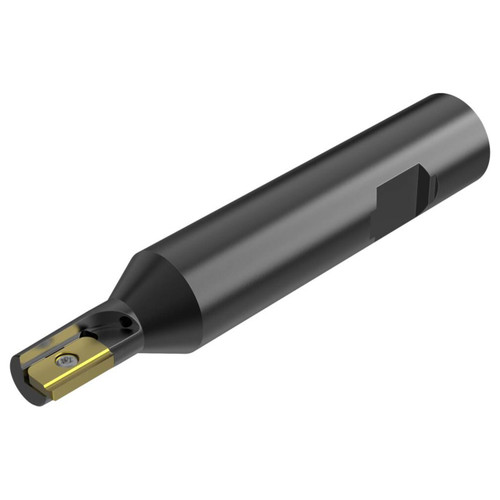

| Product Type | Indexable Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
25/64"
Cutting Diameter (Decimal Inch):
0.3900"
Cutting Diameter (mm):
9.91mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4-9/64"
Overall Length (Decimal Inch):
4.1400"
Overall Length (mm):
105.16mm
