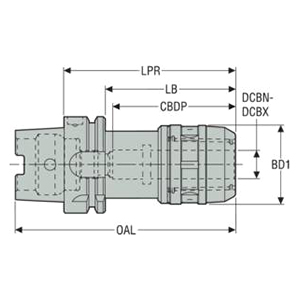

| Manufacturer Part Number | 00093040 |
| Body Diameter 1 (Decimal Inch) | 2.362" |
| Body Diameter 1 (mm) | 60.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.125" |
| Minimum Connection Bore Diameter (mm) | 3.18mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 3.386" |
| Body Length (mm) | 86.00mm |
| Protruding Length (Decimal Inch) | 4.528" |
| Protruding Length (mm) | 115.00mm |
| Overall Length (Decimal Inch) | 6.496" |
| Overall Length (mm) | 165.00mm |
| Connection Bore Depth (mm) | 80.01mm |
| Product Type | Milling Chuck |
