| Manufacturer Part Number | 00096108 |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.224" |
| Contact Surface Diameter Workpiece Side (mm) | 5.70mm |
| Functional Length (Decimal Inch) | 0.197" |
| Functional Length (mm) | 5.00mm |
| Protruding Length (Decimal Inch) | 0.984" |
| Protruding Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Maximum Rotational Speed (rpm) | 80000 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Weldon |

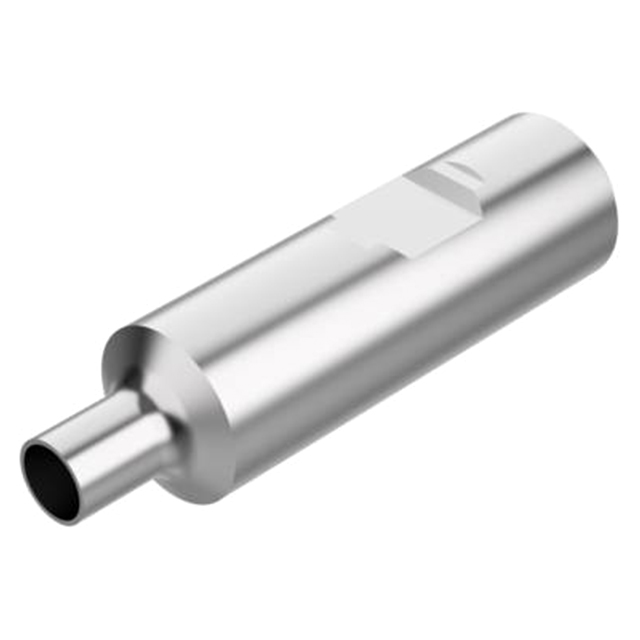

| Product Type | Replaceable Tip Milling Shank |
