Product Specifications
| Manufacturer Part Number | 02422248 |
| Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 30.00mm |
| Shank Diameter (mm) | 20.00mm |
| Protruding Length (mm) | 40.00mm |
| Shank Length (mm) | 50.00mm |
| Overall Length (mm) | 90.00mm |
| Maximum Depth of Cut (mm) | 4.50mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 25100 rpm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | SE.X09T |
| Cutting Item Material Type | Steel |
| Shank Type | SecoWeldon |
| Insert Shape Code | S |

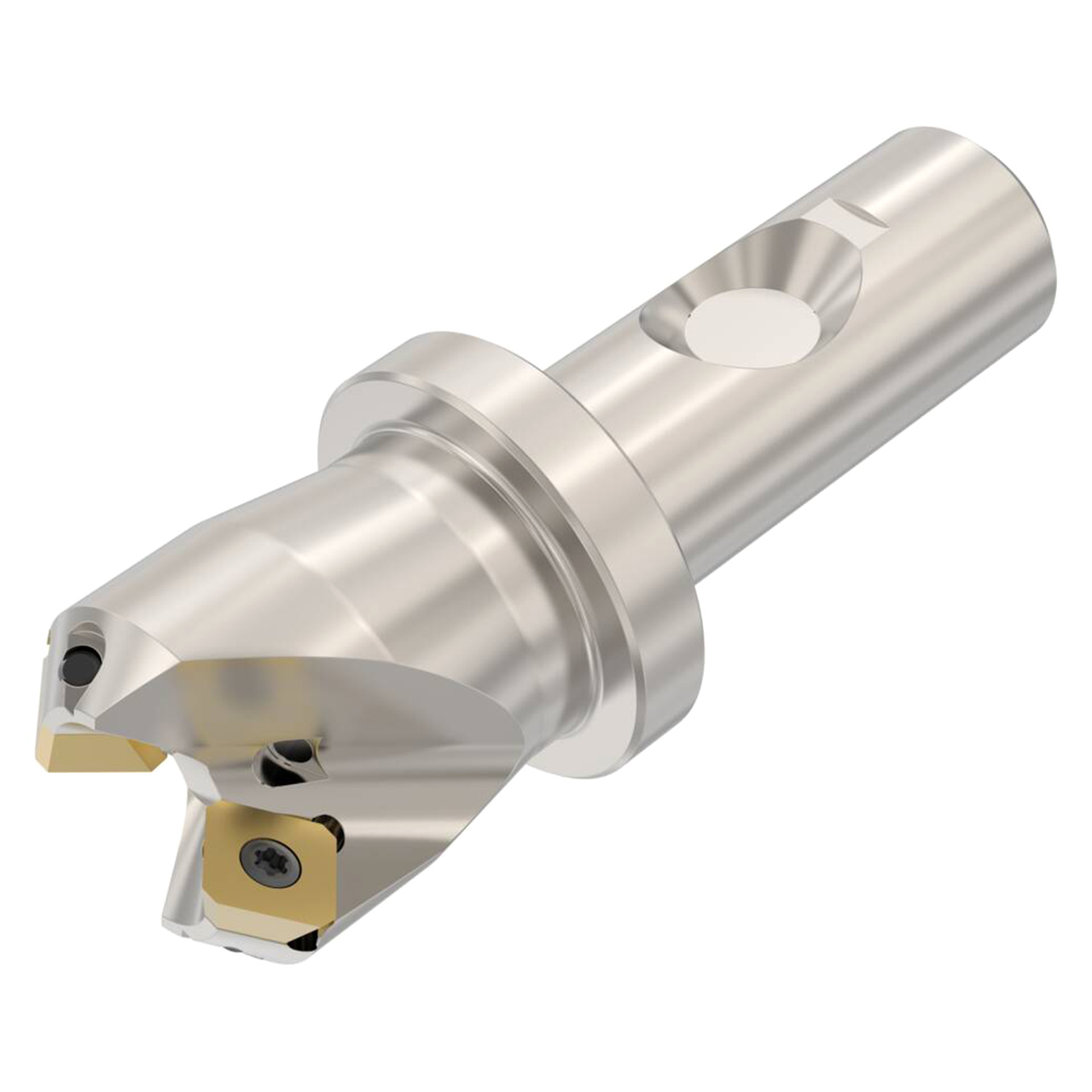

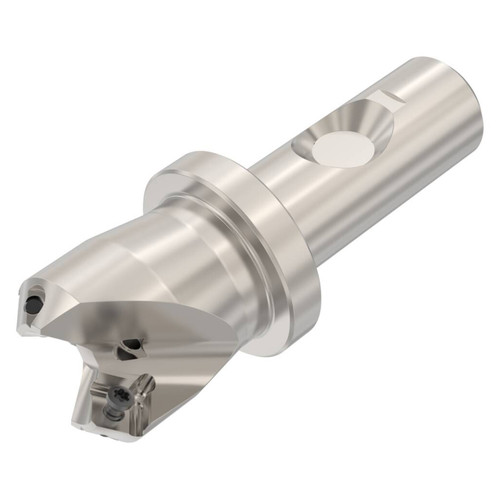

| Product Type | Indexable Chamfer & Angle End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
25/32"
Cutting Diameter (Decimal Inch):
0.7900"
Cutting Diameter (mm):
20.00mm
Shank Type:
SecoWeldon
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5400"
Overall Length (mm):
90.00mm
