Seco Tools 02439207 |218.19-160T-04-MD11 0.440" Inscribed Circle Diameter x 0.047" Corner Radius x 0.187" Thickness 3 Cutting Edge Carbide Milling Insert

$22.41
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
11/25"
Inscribed Circle (Decimal Inch):
0.4402"
Inscribed Circle (mm):
11.18mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
interval quantity:
1
SKU:
23276720
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 02439207 |218.19-160T-04-MD11 0.440" Inscribed Circle Diameter x 0.047" Corner Radius x 0.187" Thickness 3 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number02439207
Fixing Hole Diameter (Decimal Inch)0.158"
Fixing Hole Diameter (mm)4.00mm
Inscribed Circle Diameter (Decimal Inch)0.440"
Inscribed Circle Diameter (mm)11.18mm

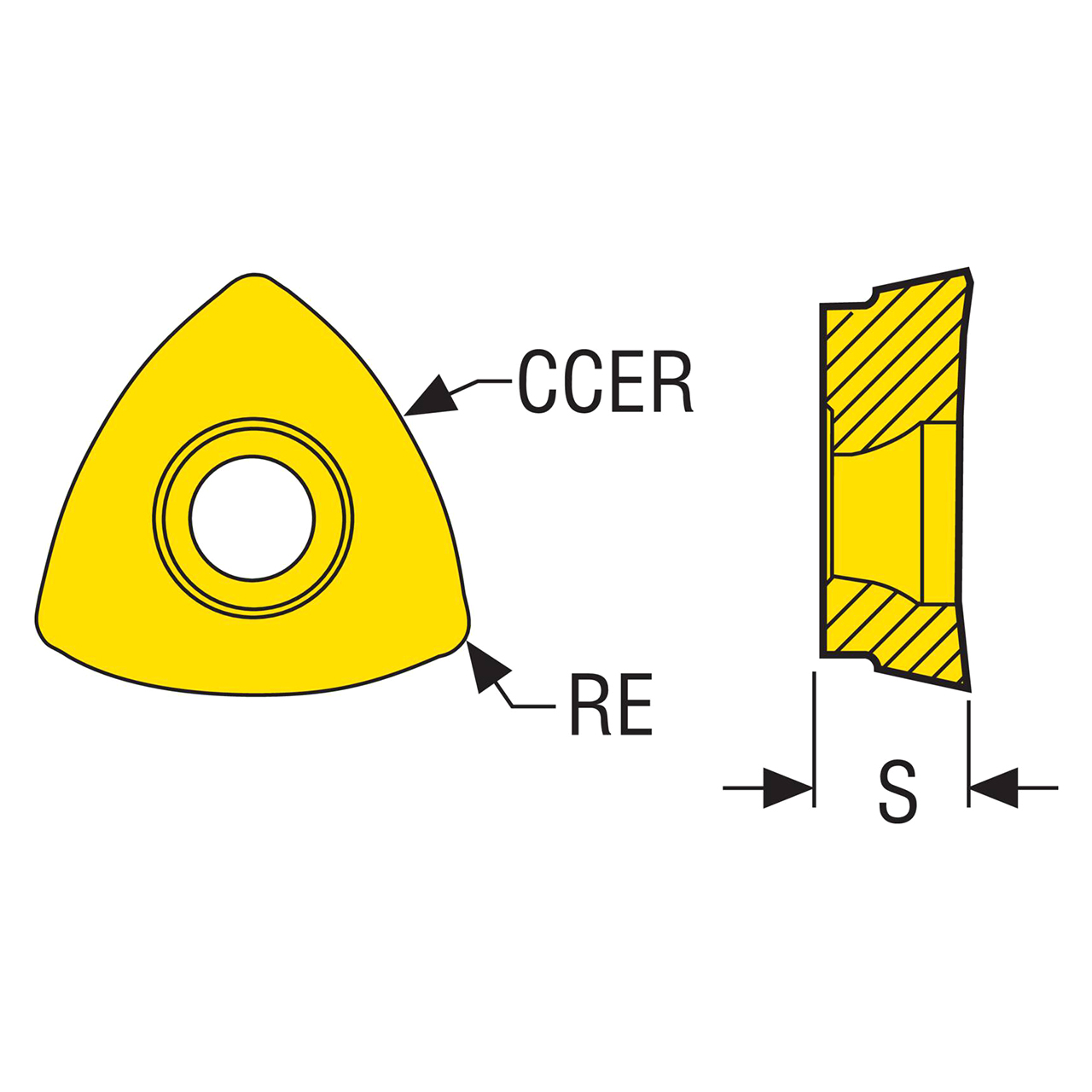

Curved Cutting Edge Radius (Decimal Inch)0.630"
Curved Cutting Edge Radius (mm)16.00mm
Corner Radius (Decimal Inch)0.047"
Corner Radius (mm)1.20mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count3
Clearance Angle Major (Degree)12 Degree
Insert HandNeutral
Cutting Geometry TypeMD
Cutting Geometry Type TechnicalMD11
Pocket Seat Code of The Cutter218.19-160
Insert Size And Shape218.19-160
Insert Shape Code218.19
MaterialCarbide
Product TypeMilling Insert
