Product Specifications
| Manufacturer Part Number | 02444594 |
| Body Diameter (Decimal Inch) | 0.728" |
| Body Diameter (mm) | 18.50mm |
| Body Diameter 1 (Decimal Inch) | 0.776" |
| Body Diameter 1 (mm) | 19.70mm |
| Body Diameter 2 (Decimal Inch) | 0.965" |
| Body Diameter 2 (mm) | 24.50mm |
| Body Length (Decimal Inch) | 2.598" |
| Body Length (mm) | 66.00mm |
| Body Length 1 (Decimal Inch) | 0.591" |
| Body Length 1 (mm) | 15.00mm |
| Body Length 2 (Decimal Inch) | 1.969" |
| Body Length 2 (mm) | 50.00mm |
| Body Length 3 (Decimal Inch) | 2.598" |
| Body Length 3 (mm) | 66.00mm |
| Functional Length (Decimal Inch) | 3.347" |
| Functional Length (mm) | 85.00mm |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 6.039" |
| Overall Length (mm) | 153.40mm |
| Body Half Taper Angle Degree) | 3.9 Degree |
| Data Chip Provision | 1 |

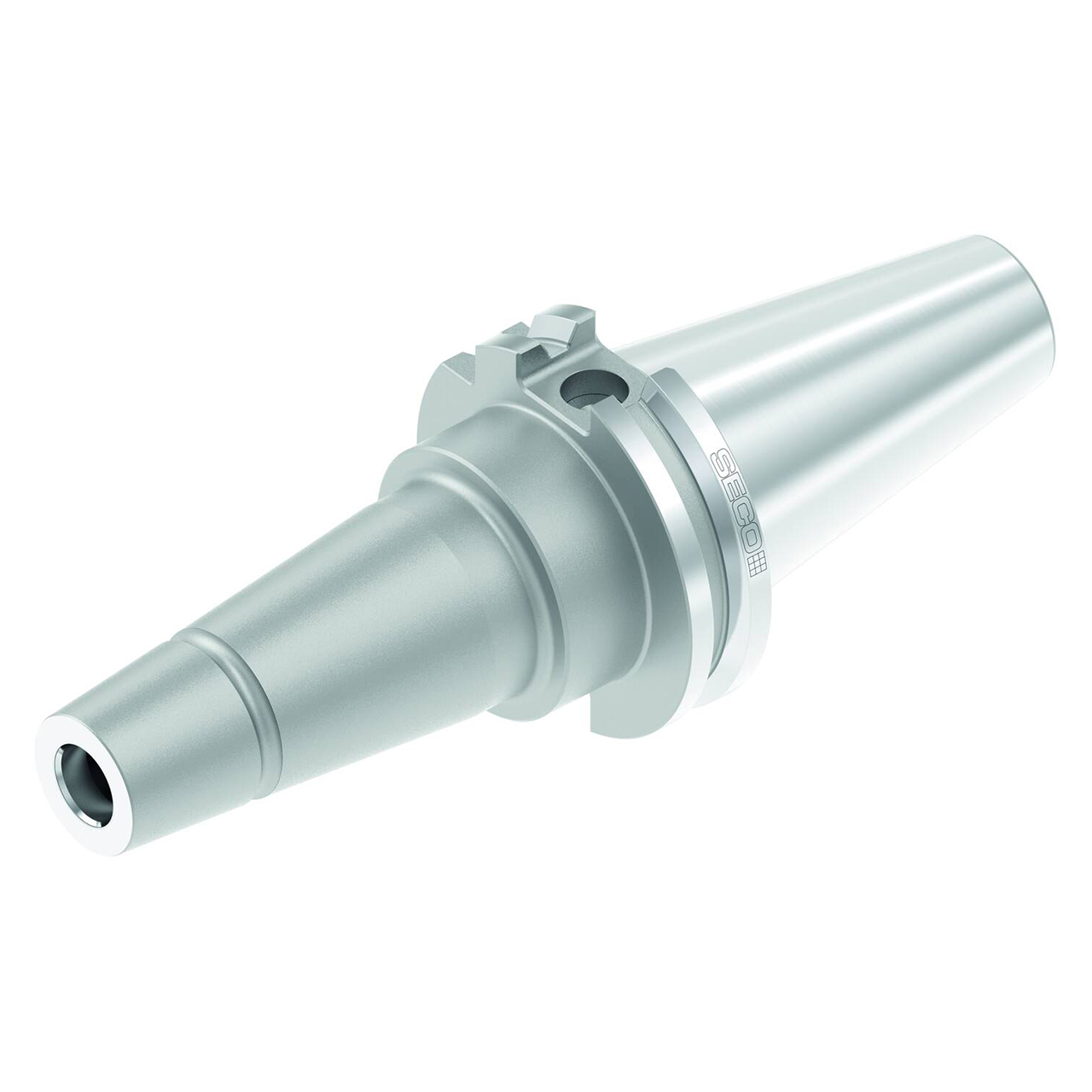

| Product Type | End Mill Holder |
