| Manufacturer Part Number | 02469729 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.551" |
| Connection Bore Diameter (mm) | 14.00mm |
| Body Length (Decimal Inch) | 0.626" |
| Body Length (mm) | 15.90mm |
| Functional Length (Decimal Inch) | 1.378" |
| Functional Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 4.071" |
| Overall Length (mm) | 103.40mm |
| Data Chip Provision | 1 |

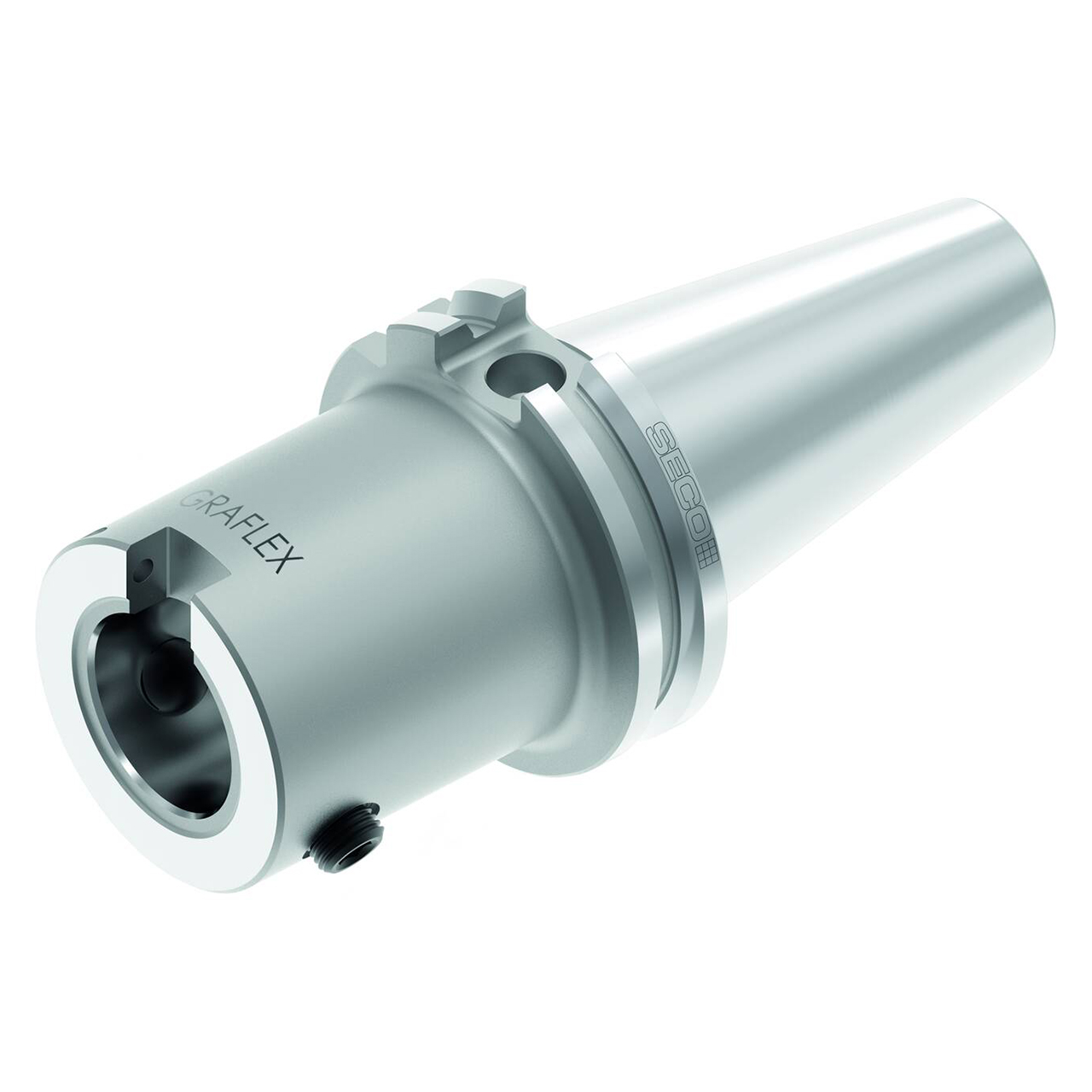

| Product Type | Modular Tool Holding System Adapter |
