Product Specifications

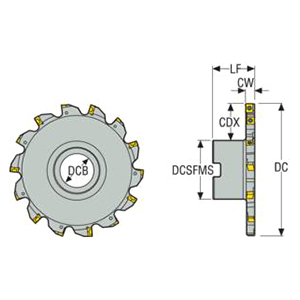

| Manufacturer Part Number | 02478999 |
| Cutting Diameter (Decimal Inch) | 5.000" |
| Cutting Diameter (mm) | 127.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.250" |
| Contact Surface Diameter Machine Side (mm) | 57.15mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Keyway Width (Decimal Inch) | 0.510" |
| Keyway Width (mm) | 12.95mm |
| Cutting Width (Decimal Inch) | 0.500" |
| Cutting Width (mm) | 12.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.500" |
| Maximum Depth of Cut (mm) | 12.70mm |
| Depth of Key Way (Decimal Inch) | 0.290" |
| Depth of Key Way (mm) | 7.37mm |
| Maximum Cutting Depth (Decimal Inch) | 1.378" |
| Maximum Cutting Depth (mm) | 35.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 8400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
12-7/10"
Cutting Width (Decimal Inch):
0.5000"
Cutting Width (mm):
12.70mm
Maximum Depth of Cut (Inch):
1/2"
Maximum Depth of Cut (Decimal Inch):
0.5000"
Maximum Depth of Cut (mm):
12.70mm
Cutter Diameter (Inch):
127"
Cutter Diameter (Decimal Inch):
5.0000"
Cutter Diameter (mm):
127.00mm
interval quantity:
1
