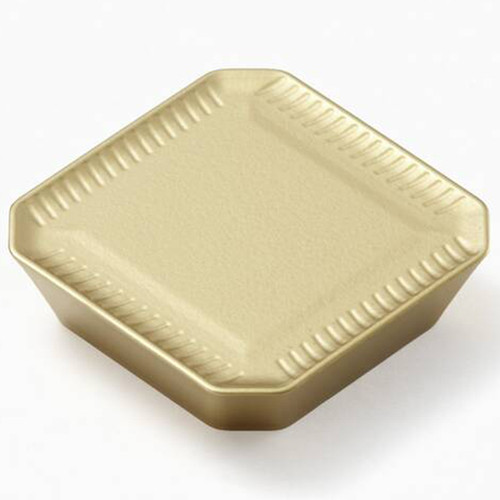

Seco Tools 02505918 | 0.529" Inscribed Circle Diameter x 0.032" Radius x 0.132" Thickness 4 Cutting Edge Carbide Milling Insert

$26.50 $20.22
(You save $6.28)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.5290"
Inscribed Circle (mm):
13.44mm
Thickness (Decimal Inch):
0.1320"
Thickness (mm):
3.36mm
interval quantity:
10
SKU:
23277438
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 02505918 | 0.529" Inscribed Circle Diameter x 0.032" Radius x 0.132" Thickness 4 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number02505918
Inscribed Circle Diameter (Decimal Inch)0.529"
Inscribed Circle Diameter (mm)13.44mm
Wiper Edge Length (Decimal Inch)0.136"
Wiper Edge Length (mm)3.46mm
Cutting Edge Effective Length (Decimal Inch)0.276"
Cutting Edge Effective Length (mm)7.00mm
Corner Chamfer Width (Decimal Inch)0.008"
Corner Chamfer Width (mm)0.19mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.132"
Insert Thickness (mm)3.36mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME13
Pocket Seat Code of The CutterSE..1303
Insert Size And ShapeSEKR1303
Insert Rake Angle (Degree)24 Degree
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert
