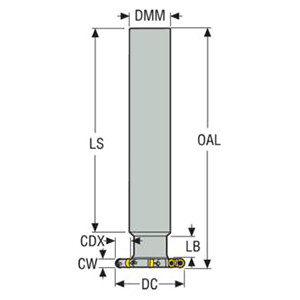

Product Specifications
| Manufacturer Part Number | 02541834 |
| Cutting Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Body Length (mm) | 20.00mm |
| Protruding Length (mm) | 90.00mm |
| Shank Length (mm) | 108.00mm |
| Overall Length (mm) | 140.00mm |
| Cutting Width (mm) | 10.00mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Maximum Cutting Depth (mm) | 12.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 15400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0504 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
10"
Cutting Width (Decimal Inch):
0.3937"
Cutting Width (mm):
10.00mm
Maximum Depth of Cut (Inch):
37/94"
Maximum Depth of Cut (Decimal Inch):
0.3937"
Maximum Depth of Cut (mm):
10.00mm
Cutter Diameter (Inch):
40"
Cutter Diameter (Decimal Inch):
1.5748"
Cutter Diameter (mm):
40.00mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7900"
Shank Diameter (mm):
20.00mm
interval quantity:
