Product Specifications

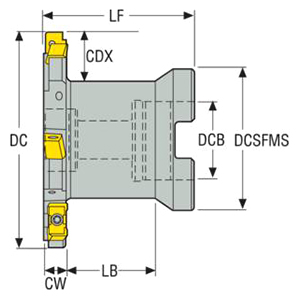

| Manufacturer Part Number | 02541842 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.580" |
| Contact Surface Diameter Machine Side (mm) | 40.13mm |
| Body Length (Decimal Inch) | 1.209" |
| Body Length (mm) | 30.70mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Cutting Width (Decimal Inch) | 0.312" |
| Cutting Width (mm) | 7.92mm |
| Maximum Depth of Cut (Decimal Inch) | 0.312" |
| Maximum Depth of Cut (mm) | 7.93mm |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Maximum Cutting Depth (Decimal Inch) | 0.598" |
| Maximum Cutting Depth (mm) | 15.20mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 12300 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | LNK.0504 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Width (Inch):
7-23/25"
Cutting Width (Decimal Inch):
0.3118"
Cutting Width (mm):
7.92mm
Maximum Depth of Cut (Inch):
5/16"
Maximum Depth of Cut (Decimal Inch):
0.3122"
Maximum Depth of Cut (mm):
7.93mm
Cutter Diameter (Inch):
63-1/2"
Cutter Diameter (Decimal Inch):
2.5000"
Cutter Diameter (mm):
63.50mm
