Product Specifications
| Manufacturer Part Number | 02578584 |
| Maximum Work Piece Parting Diameter (Decimal Inch) | 4.724" |
| Maximum Work Piece Parting Diameter (mm) | 120.00mm |
| Maximum Cutting Depth (Decimal Inch) | 2.362" |
| Maximum Cutting Depth (mm) | 60.00mm |
| Cutting Width (Decimal Inch) | 0.197" |
| Cutting Width (mm) | 5.00mm |
| Functional Height (Decimal Inch) | 0.843" |
| Functional Height (mm) | 21.40mm |
| Overall Length (Decimal Inch) | 4.724" |
| Overall Length (mm) | 120.00mm |
| Overall Width (Decimal Inch) | 0.173" |
| Overall Width (mm) | 4.40mm |
| Cutting Direction | Neutral |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Blade |
| Version (Internal/External/Both) | External |

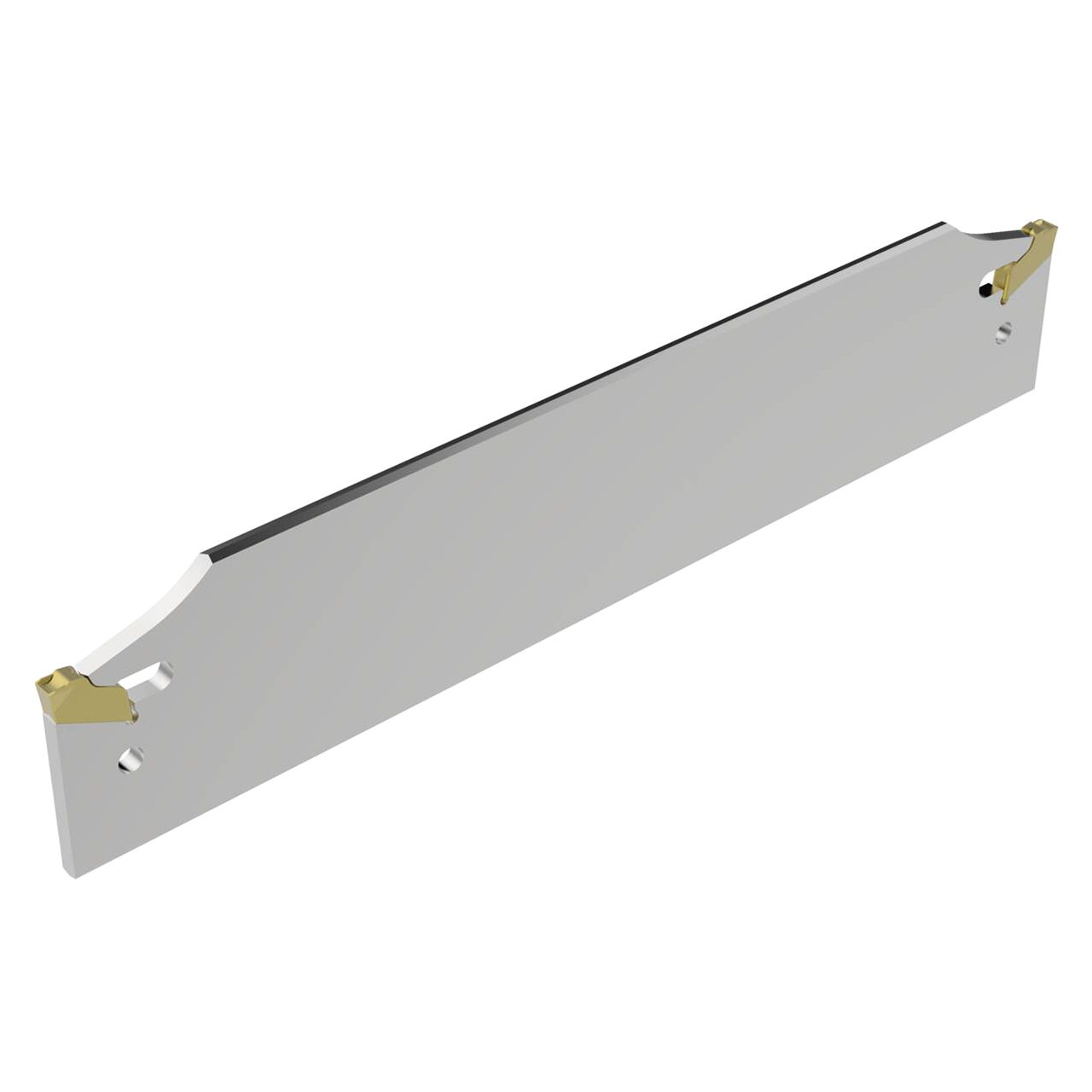

| Product Type | Indexable Cutoff Blade |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Neutral
Blade Overall Length (Inch):
4-23/32"
Blade Overall Length (Decimal Inch):
4.7240"
Blade Overall Length (mm):
120.00mm
interval quantity:
1
