Product Specifications
| Manufacturer Part Number | 02580691 |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 11.40mm |
| Functional Length (mm) | 48.00mm |
| Protruding Length (mm) | 67.00mm |
| Overall Length (mm) | 115.00mm |
| Maximum Rotational Speed (rpm) | 63600 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical Densimet |

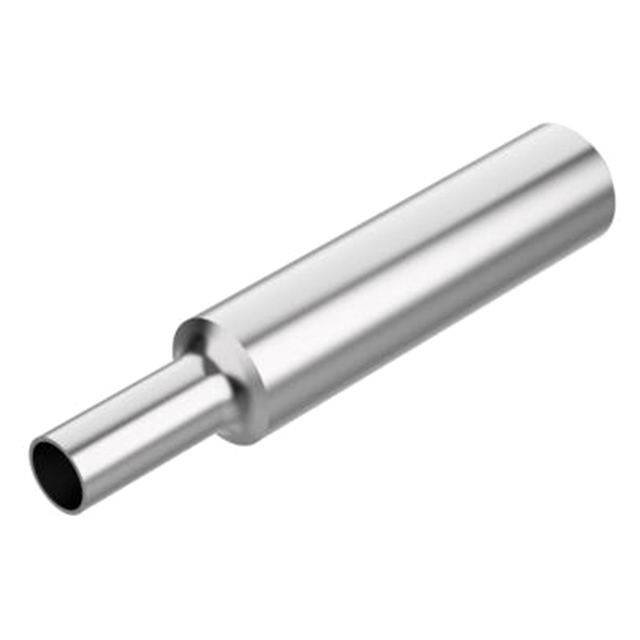

| Product Type | Replaceable Tip Milling Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical Densimet
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Overall Length (Inch):
4-19/36"
Overall Length (Decimal Inch):
4.5276"
Overall Length (mm):
115.00mm
interval quantity:
1
