Product Specifications

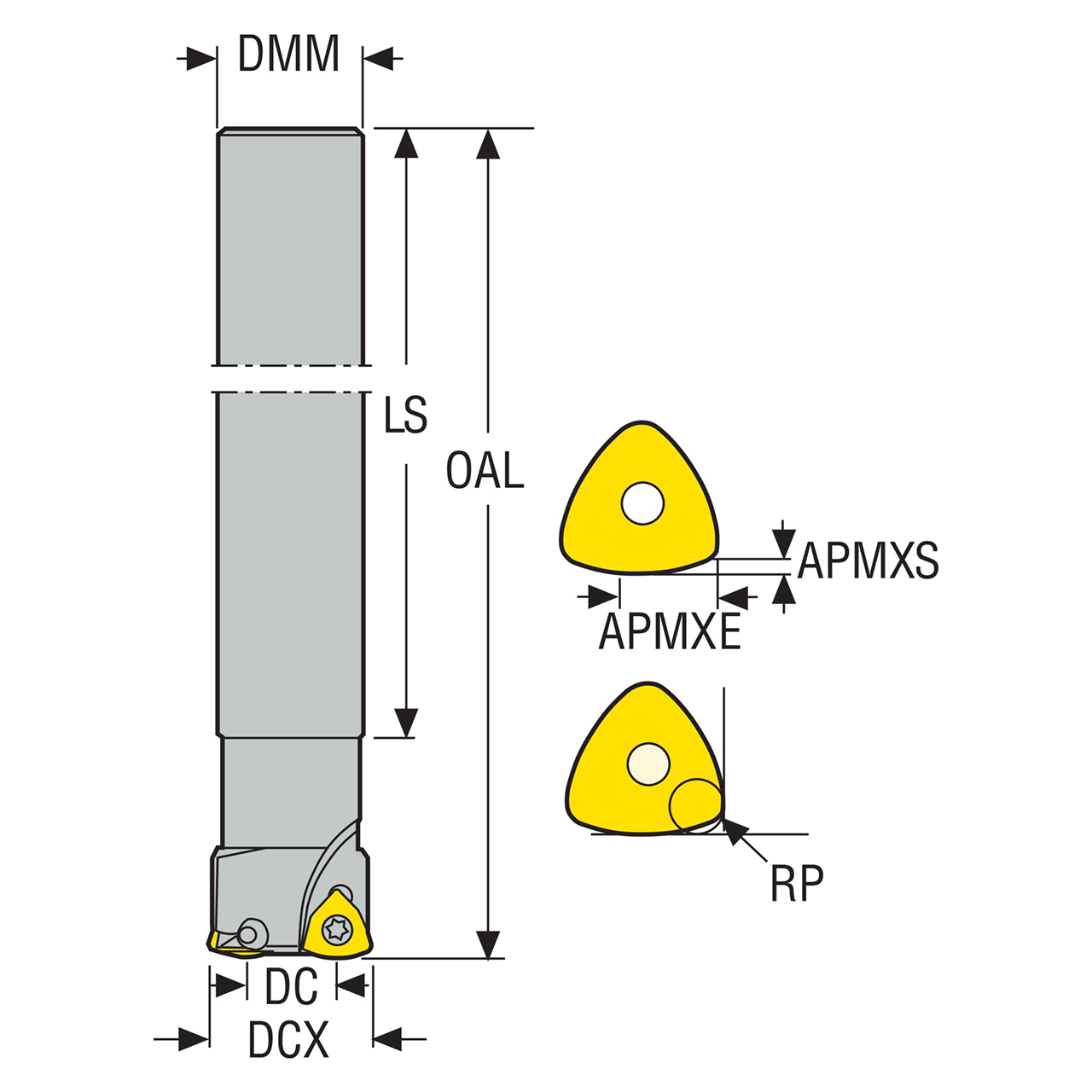

| Manufacturer Part Number | 02616320 |
| Cutting Diameter (mm) | 16.46mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 41.46mm |
| Protruding Length (mm) | 114.00mm |
| Shank Length (mm) | 135.00mm |
| Overall Length (mm) | 170.00mm |
| Maximum Depth of Cut (mm) | 0.74mm |
| Programming Radius (mm) | 1.47mm |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.48 Degree |
| Maximum Rotational Speed (rpm) | 29100 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |
| Product Type | High Feed Trigon Shape Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
35/54"
Cutting Diameter (Decimal Inch):
0.6480"
Cutting Diameter (mm):
16.46mm
Maximum Depth of Cut (Inch):
2/69"
Maximum Depth of Cut (Decimal Inch):
0.0291"
Maximum Depth of Cut (mm):
0.74mm
Shank Type:
Cylindrical
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
interval quantity:
