| Manufacturer Part Number | 02625488 |
| Insert Gauge Length (Decimal Inch) | 0.626" |
| Insert Gauge Length (mm) | 15.90mm |
| Cutting Width (Decimal Inch) | 0.236" |
| Cutting Width (mm) | 6.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.551" |
| Maximum Cutting Depth Insert (mm) | 14.00mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.177" |
| Insert Thickness (mm) | 4.50mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | LC1606 |
| Material | Carbide |

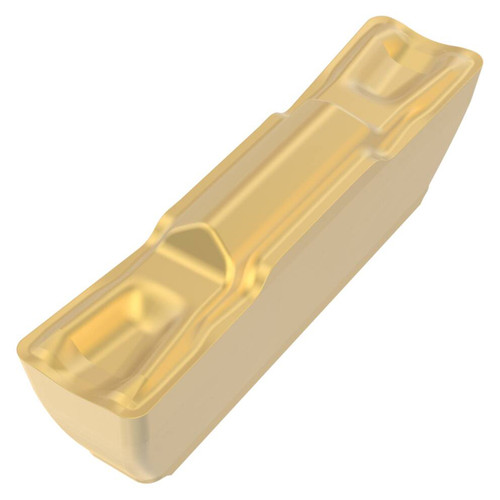

| Product Type | Multi-Directional Turning Insert |
